Vitoria Aluminum Carport 10 x 16 x 7 ft. | Palram-Canopia

Canopia by Palram

Regular price
Price: $3,277.00 CAD
Regular price
List Price: $3,699.00 CAD
Sale price
Price: $3,277.00 CAD
You save: $422.00 (11%)
Shipping calculated at checkout.

Availability: 10 in stock

Estimated Arrival: Between May 29 and Jun 16. CANADA Only.

Shipping Update: Typical estimated delivery time ranges from 3-15 Business Days (pre-orders excluded). Certain remote locations may require a longer time.

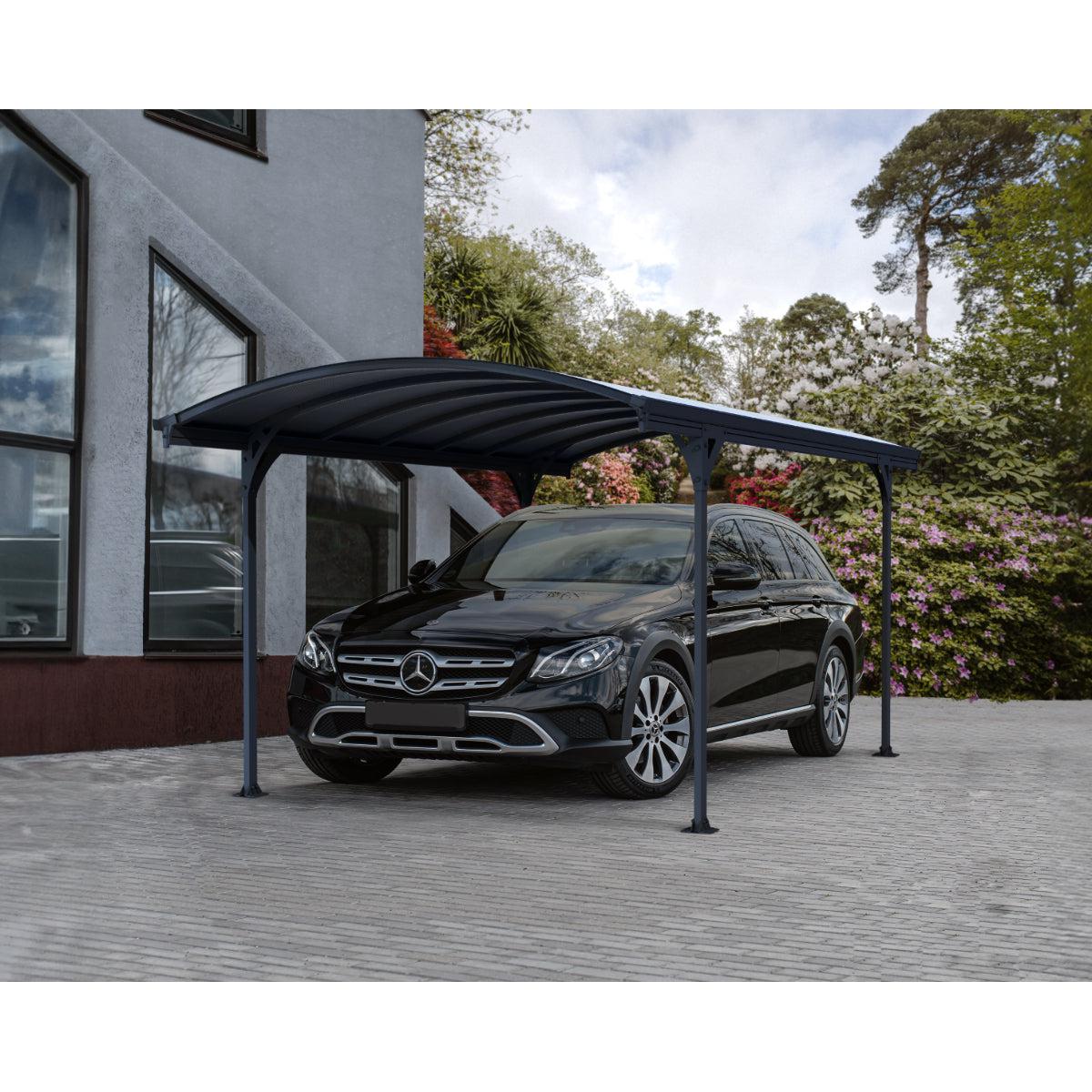

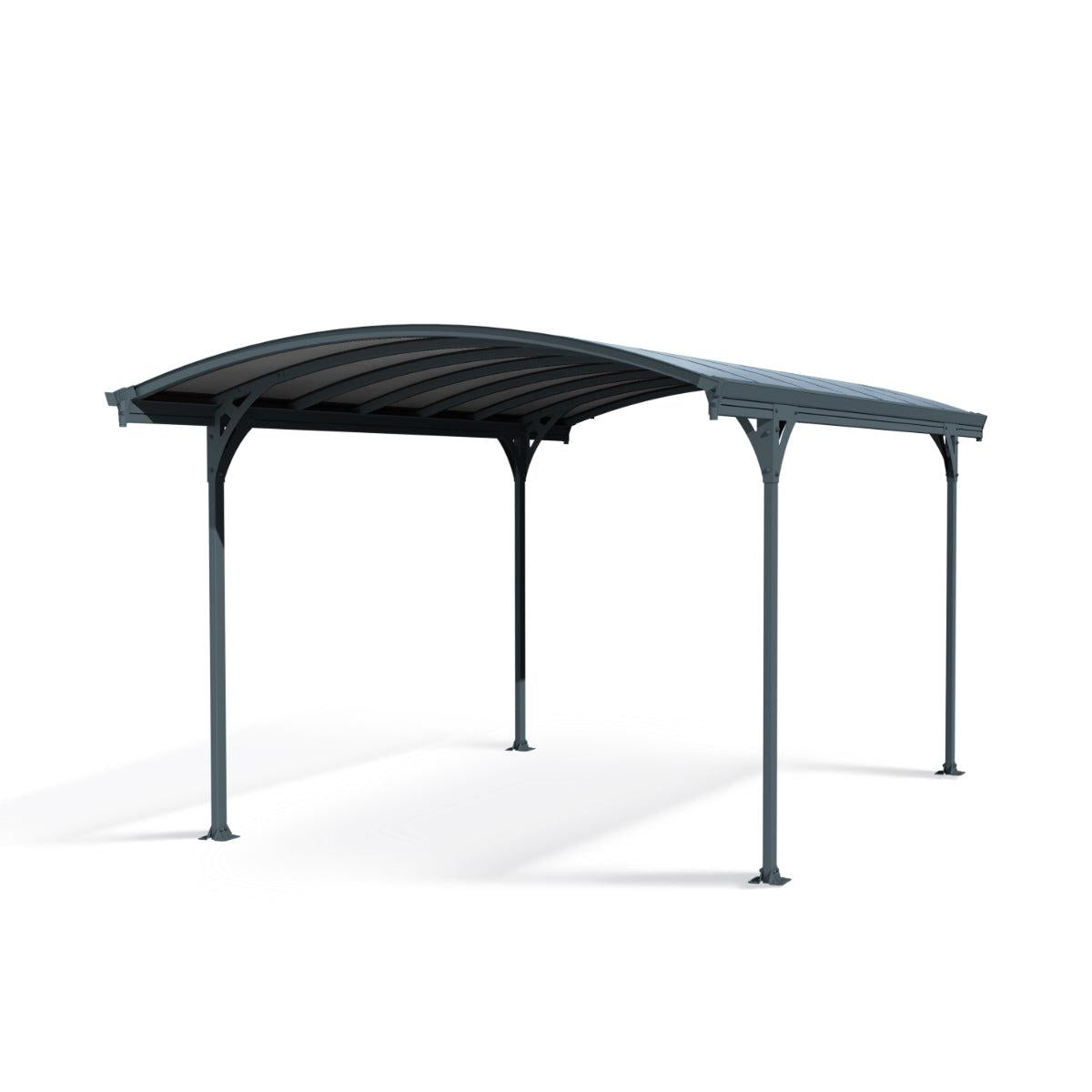

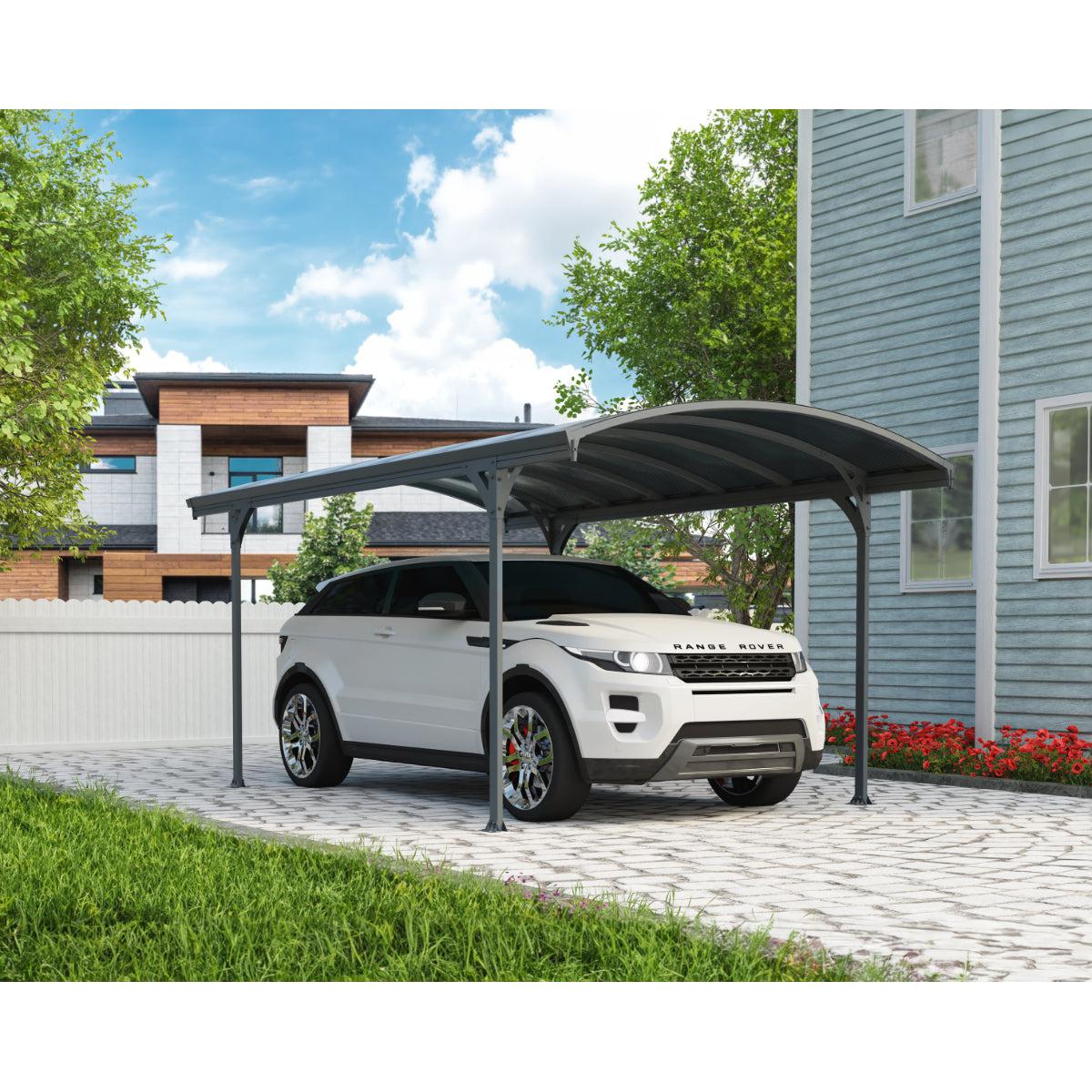

The Victoria Carport provides a 9 ft entry width and 7.5ft clearance. Its snow load capacity is up to 20lbs/ft² and it's engineered to be relocated and reassembled. Plus, the carport boasts a gutter, twin-wall polycarbonate roof panels, and an aluminum rust-resistant frame. Get the kit and make the most of your space.

[Factory Sale May 10-31st, 2024, SAVE EXTRA, Price as Marked]

  • Highly resistant, safe polycarbonate carport / multi-purpose structure, designed for the superior protection of your car all year round
  • Transmits natural sunlight while providing up to 100% protection from harmful UV sun rays
  • Lifetime resilient polycarbonate glazing; does not fracture, become brittle or turn yellow over time
  • Strong, anti-rust aluminum structure offering ample shading
  • Specially engineered to withstand harsh weather conditions
  • The four-post architecture eases access and car parking
  • Clean-lined, functional design
  • Maintenance-free, built to last thanks to outstandingly durable materials
  • Made with 100% recyclable material
  • 10 Years Limited Warranty
  • Click to download Instruction Manuals

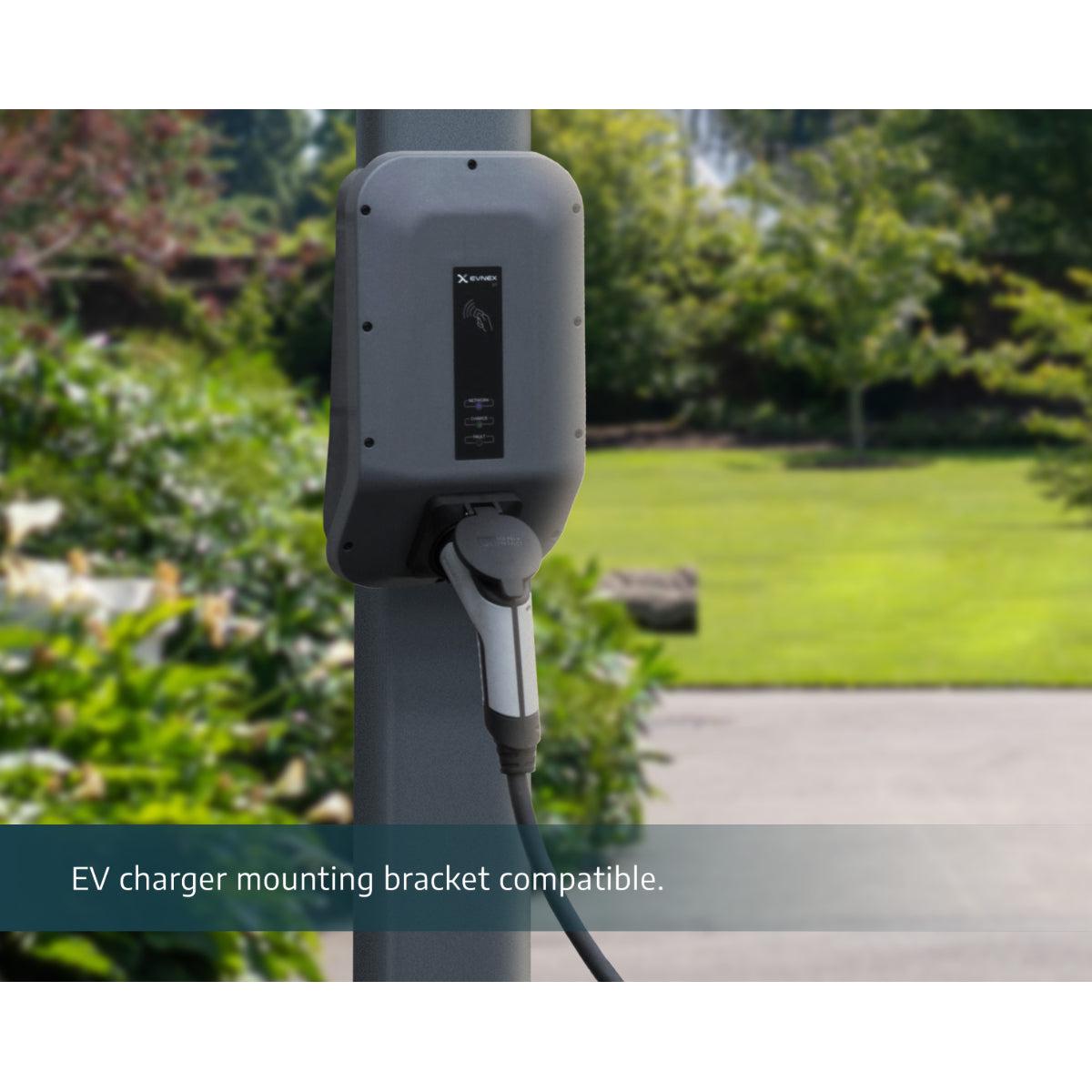

EV Charger

For electric vehicles that will be parked under the carport, you can mount your EV charger on a carport post.

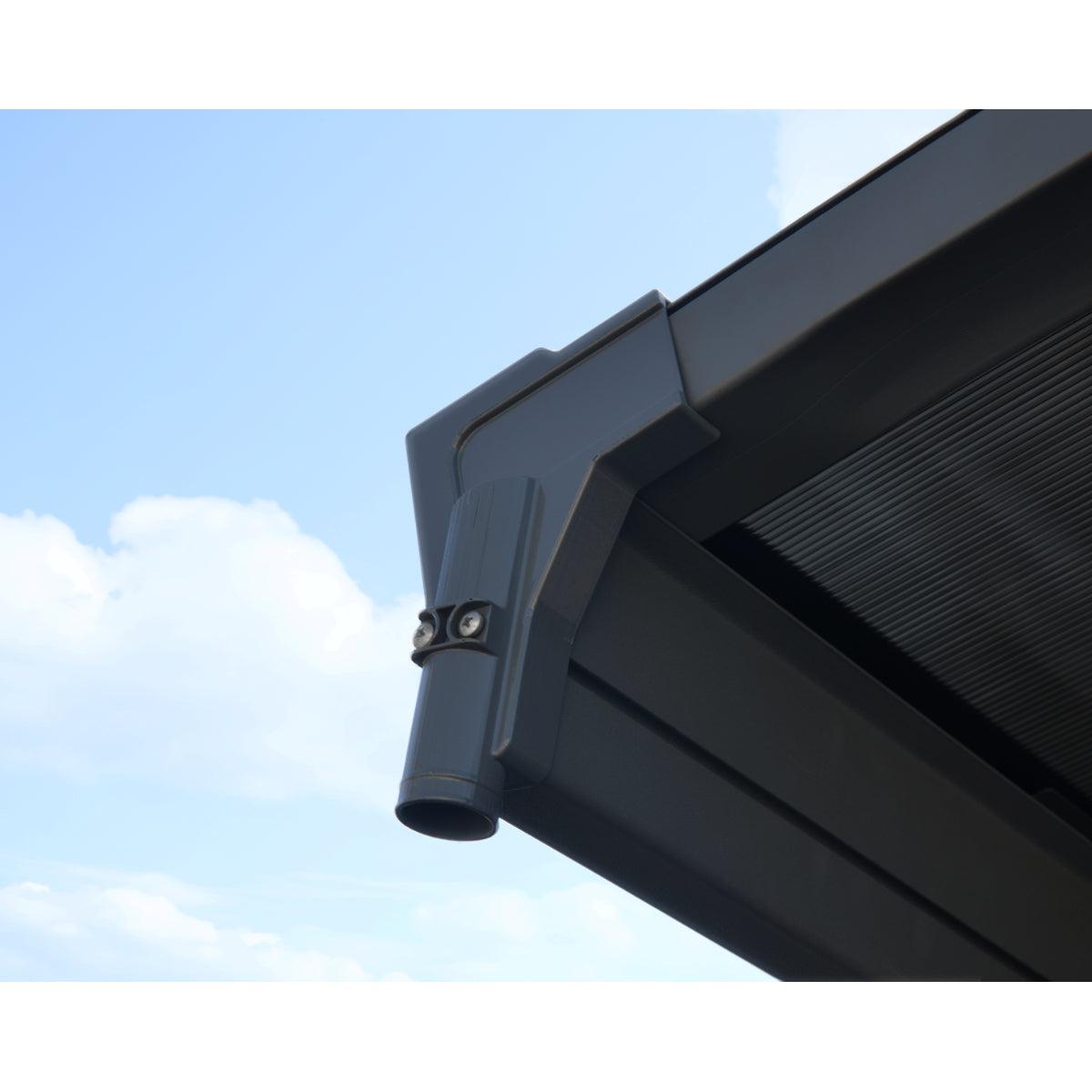

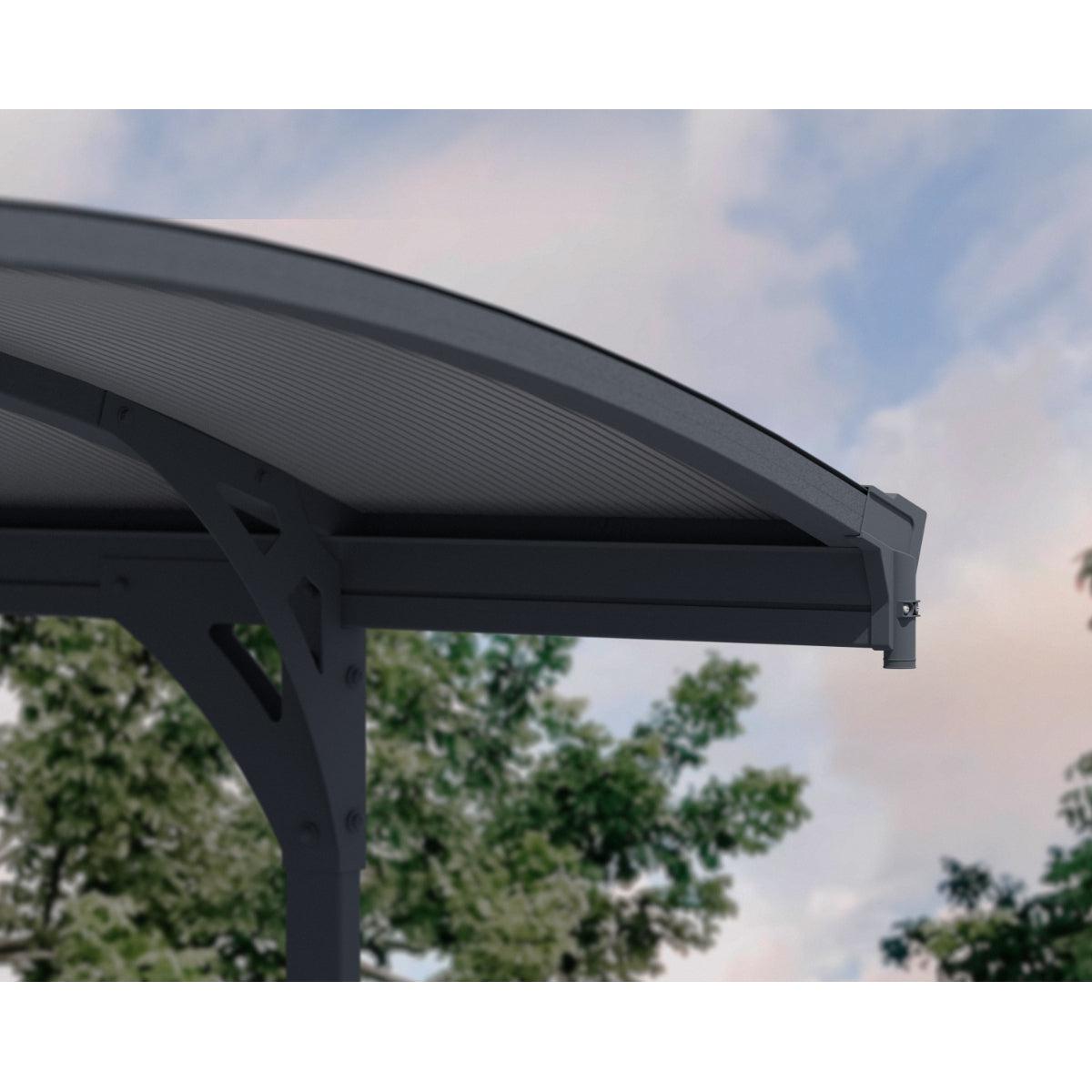

Gutter & gutter heads

Integrated gutter and gutter heads allow you to easily channel and collect rainwater for a sustainable irrigation system

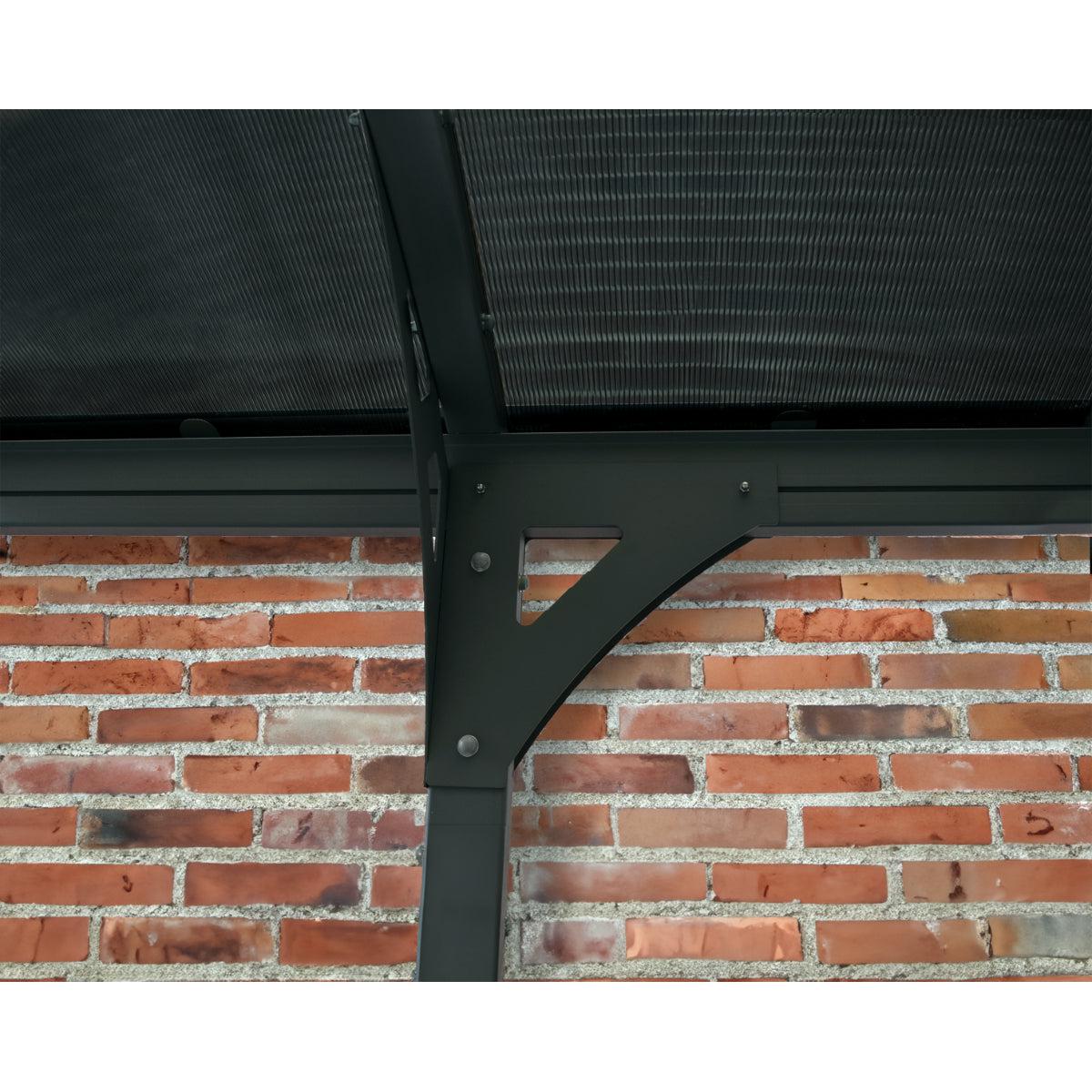

Aluminum Structure

-Rust-resistant, anthracite powder-coated frame made of heavy-duty aluminum and laser-cut galvanized steel connectors
-Ready to assemble pre-drilled profiles

Polycarbonate panels

-Virtually unbreakable, advanced engineered bronze corrugated polycarbonate roof panels are high impact, shatter resistant and protect from inclement weather
-Maintain their integrity, provide complete UV blockage, and are 100% UV protected; they do not discolor, fracture, or become brittle over time
-Safe, quick, and easy DIY assembly Sliding and lock roofing panel system
-Ready to assemble pre-cut panels

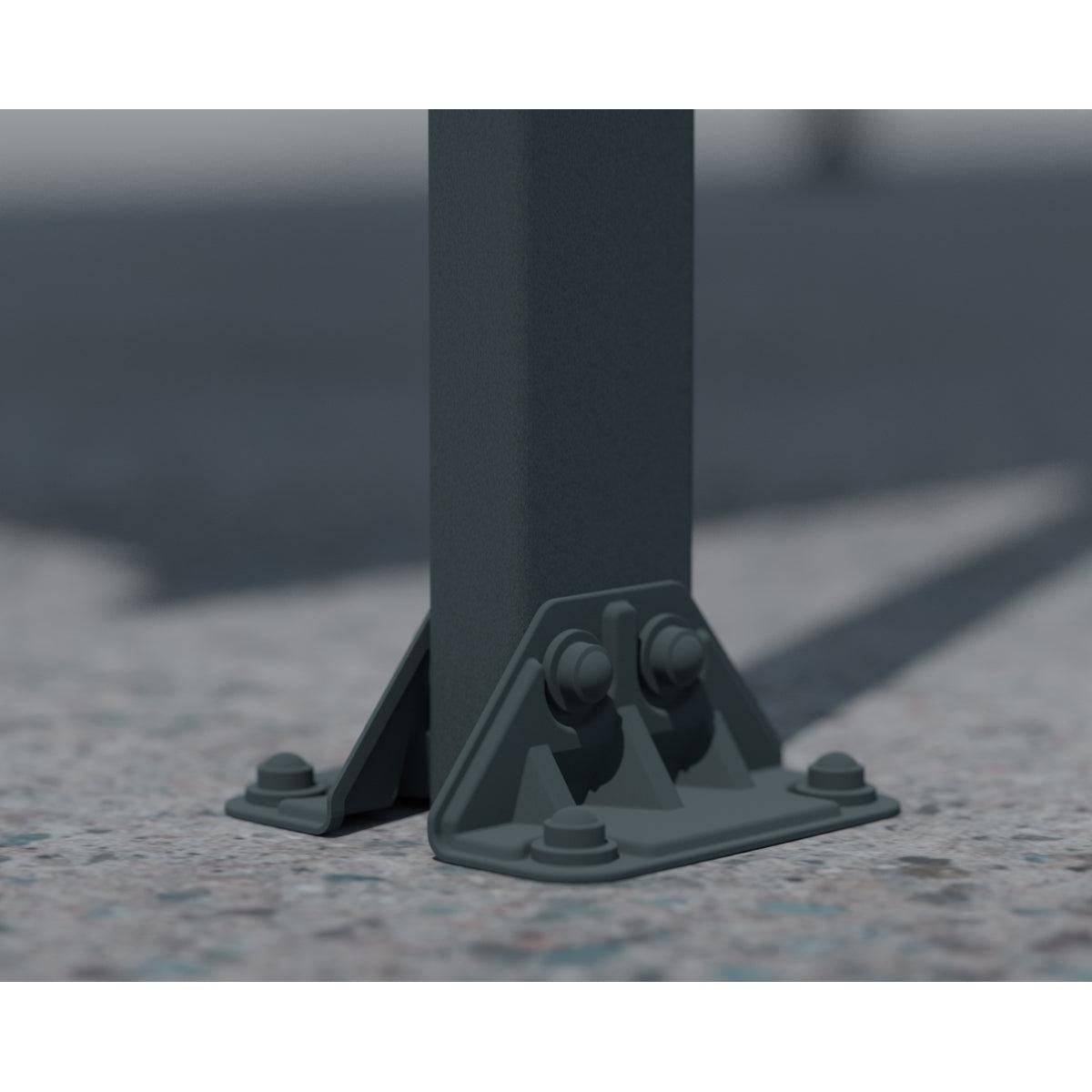

Anchoring

-Requires a solid level surface, Anchoring and foot-pads included
-Secure the carport to the surface of your choosing
-Structure can be easily relocated
-4 Sturdy and durable 8.4 cm (3.15 in. x 1.57 in.) aluminum poles

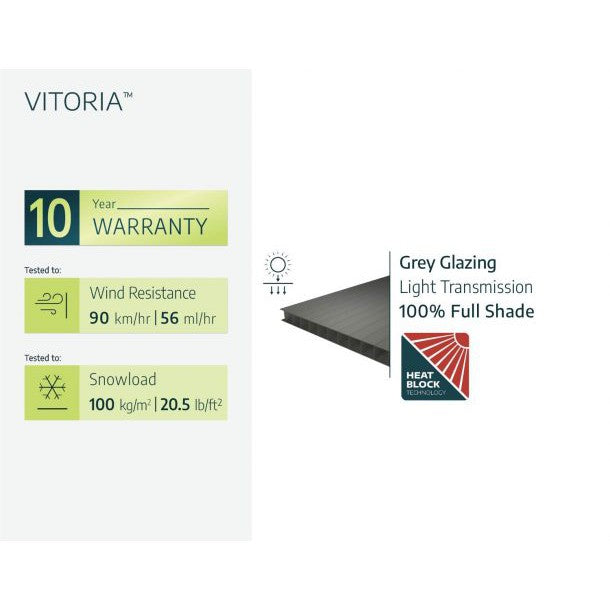

Specifications
  • COVERING AREA = 14.6M2 / 157FT2
  • STORAGE AREA = 9.5M2 / 102FT2
  • PRODUCT VOLUME = 20.7M3 / 732.7FT3
  • WIND RESISTANCE – 90km/hr | 56ml/hr
  • SNOW LOAD – 100kg/m² | 20.5lbs/ft²
  • LIGHT TRANSMISSION – 15%
  • POLYCARBONATE PANEL – 6mm

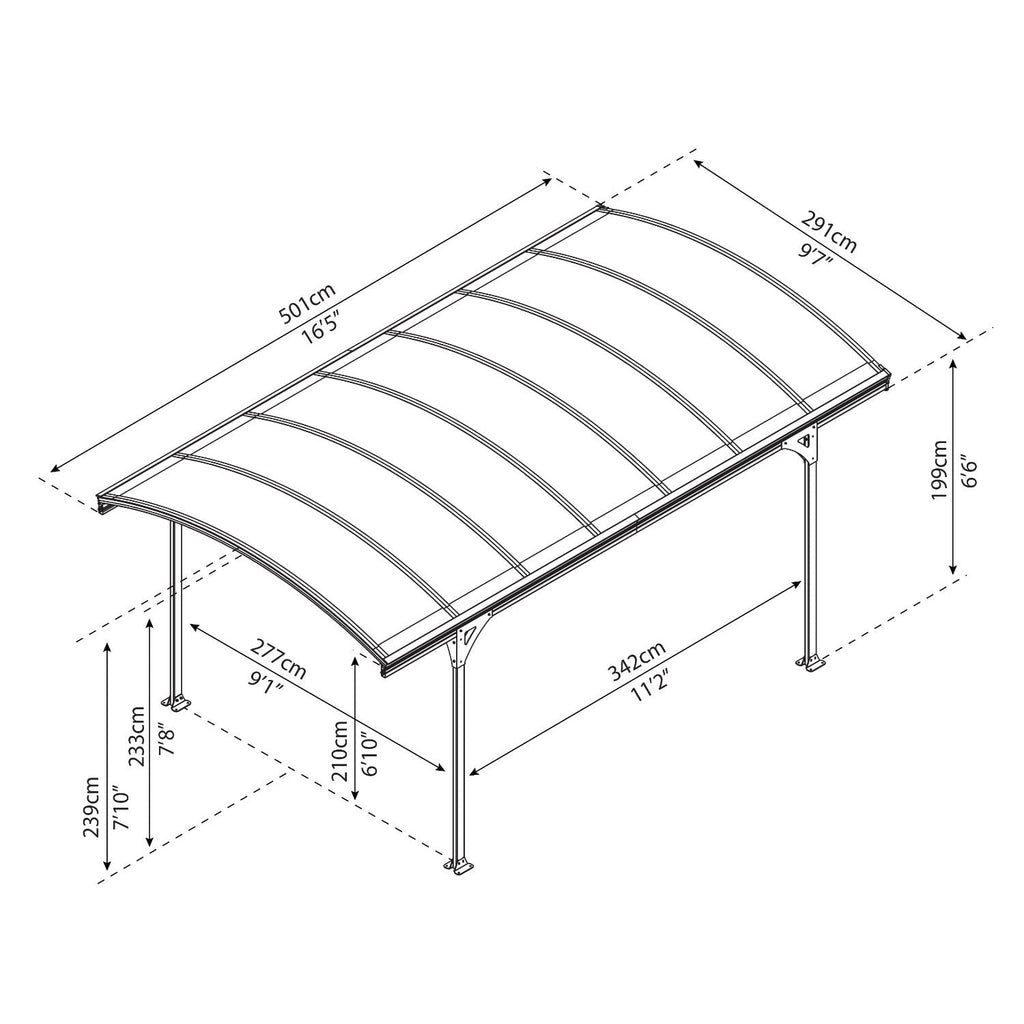

Dimensions

A Length 501cm 16'5"ft
B Width 291cm 9'7"ft
C Height 239cm 7'10"ft

Foundation

A
Prepare the site

The product must be built on a solid an leveled surface in order to perform properly.

1 - Clear the site

1
2

2 - Level the ground

3
4
IMPORTANT

We recommend checking for restrictions or covenants for building this product in your area. In addition we advise to check if you need to submit any forms or if any permit is required prior to building the product.

B
Choose your foundation type

Option 1: Concrete / Wooden Deck

The screws and masonry anchors supplied with the kit are suitable for concrete fixing only. Please consult with an expert regarding which fasteners are suitable for other surfaces types (not supplied).

Group 7793@2x
Group 8332@2x

Option 2: Paving stones

Dig holes into the ground and fill with concrete. For frozen areas, please check the required depth needed for these holes.

Group 7798@2x
Group 7799@2x
Group 7800@2x

Option 3: Solid ground / Asphalt

a – 10 cm / 4″ | b + c – 40 cm / 1’4″

Option 3: Solid ground / Asphalt

Group 8497@2x
Group 8496@2x
Group 8495@2x

a + b + c – 40 cm / 1’4″

C
Dimensions
Group 8515

The Illustration describes center-to-center distance between poles.

Group 8498

Having purchased a longer carport, go to “Foundation Dimensions” page for further information.
