Arrow Steel Carport Canopy 10 x 20 x 7 ft.

Arrow

Regular price
Price: $2,197.00 CAD
Regular price
List Price: $2,599.00 CAD
Sale price
Price: $2,197.00 CAD
You save: $402.00 (15%)
Shipping calculated at checkout.

Availability: 247 in stock

Estimated Arrival: Between Apr 17 and May 05. CANADA Only.

Shipping Update: Typical estimated delivery time ranges from 3-15 Business Days (pre-orders excluded). Certain remote locations may require a longer time.

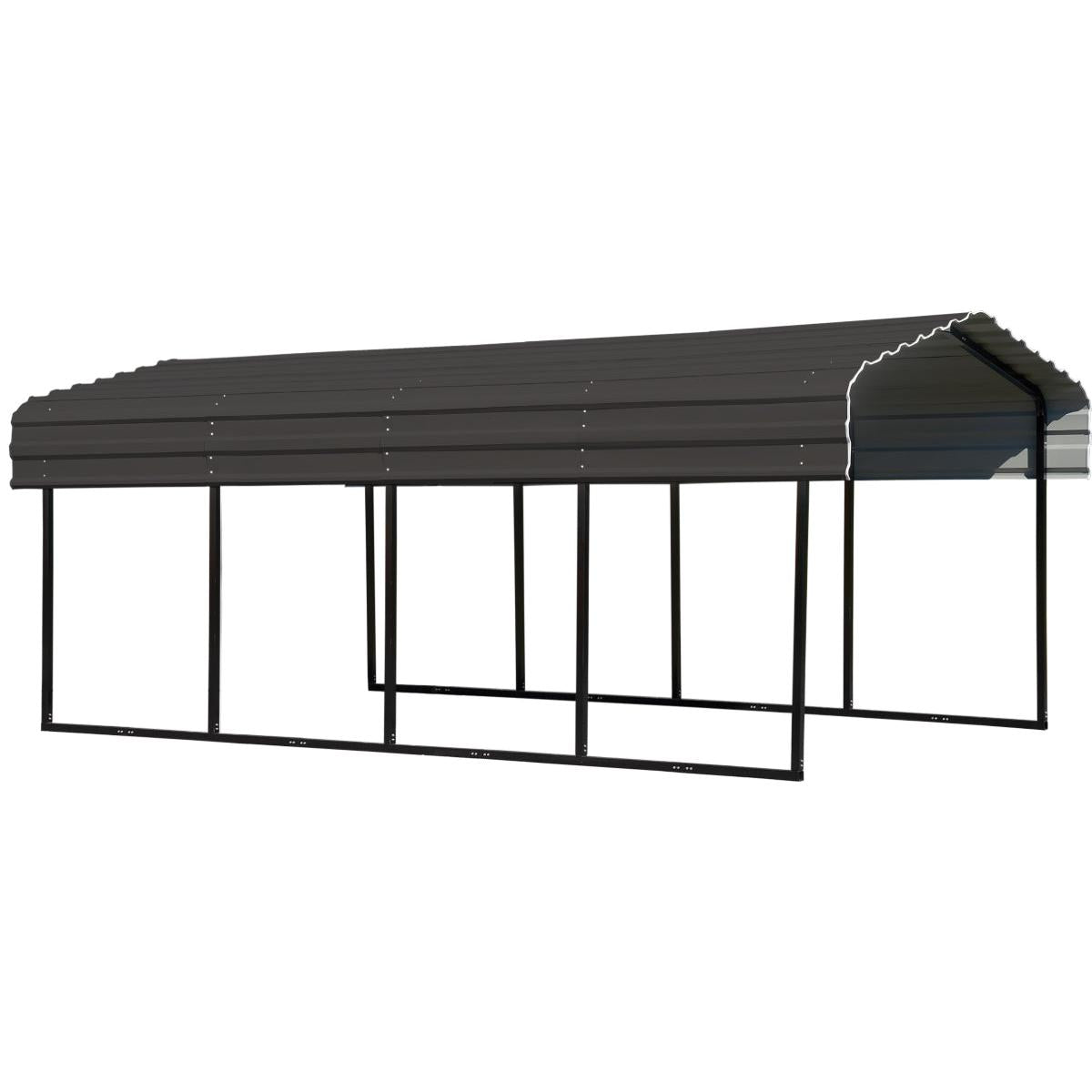

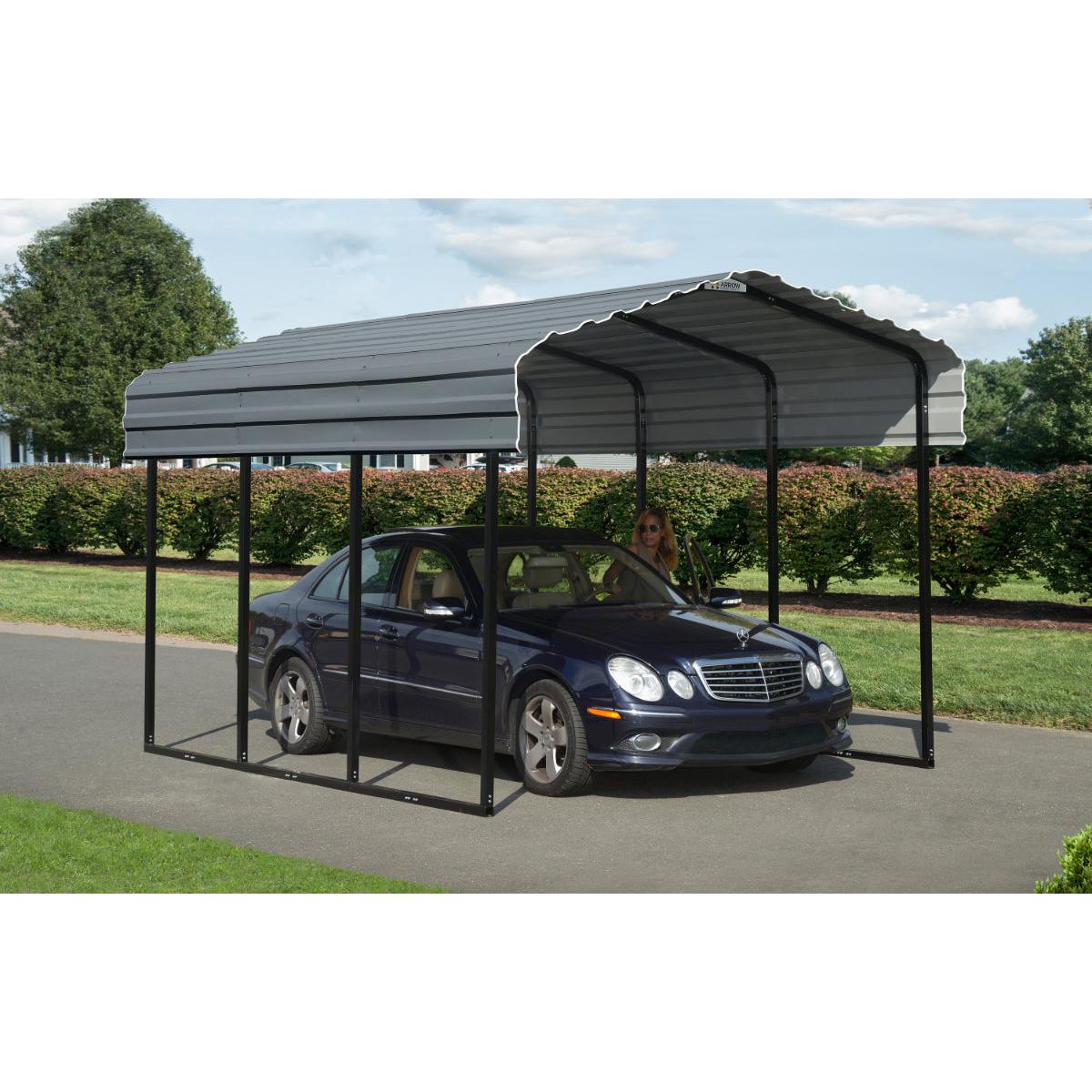

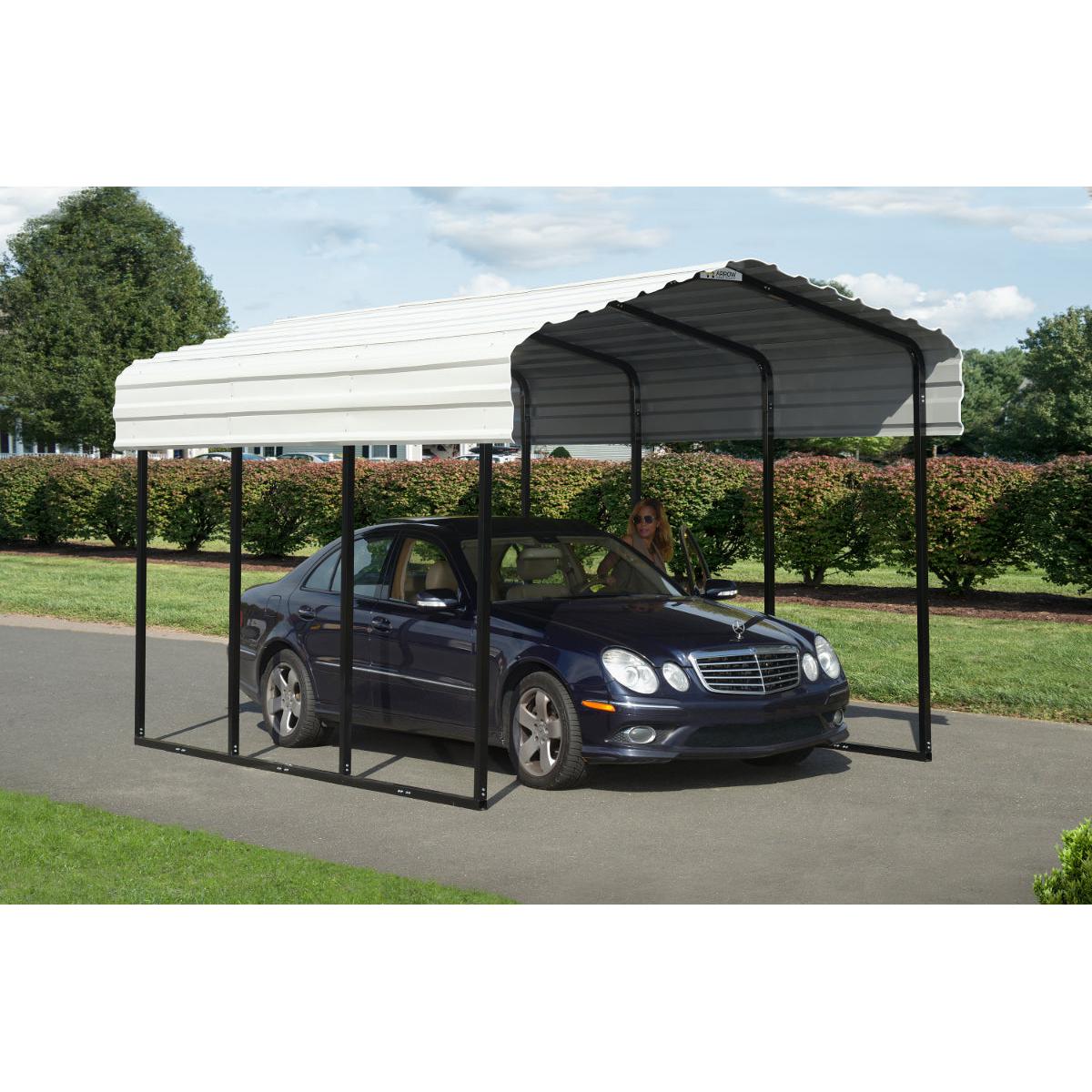

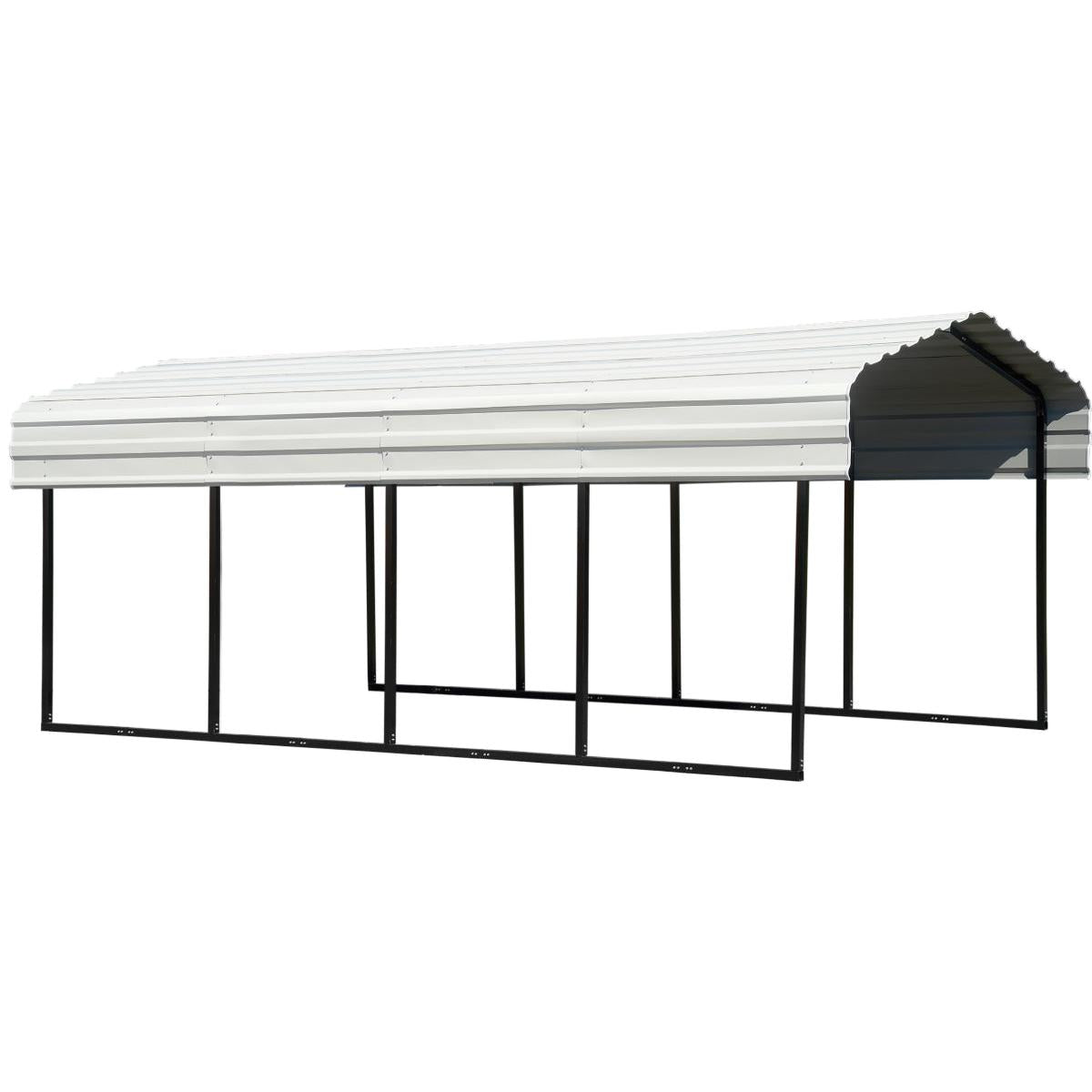

Experience ultimate protection and convenience with the 10 ft. wide Carport from Arrow. This compact, all-steel shelter fits smaller vehicles and can be used for multiple purposes like cars, boats, tractors, and more. It offers reliable shade, snow, and wind resistance, thanks to a heavy-duty galvanized steel roof and an all-steel, premium powder-coated tube frame. Make outdoor picnic areas and other areas come alive with Arrow's Carport!

Highlights:
  • It is featuring a 2 in. square tube frame, the Arrow Carport provides stability and strength to the unit, increasing its wind and snow load capability.
  • An all-weather carport that will protect your vehicle or outdoor space all-year long: the Arrow Carport is built to take on even harsh weather - winds up to 100 mph, and a snow load of 35 PSF.
  • Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws for assembly that's faster, and more convenient right out of the box
  • A heavy-duty, galvanized steel roof that's built to last - the 10 ft. Carport features a 29-gauge painted galvanized steel for corrosion resistance.
  • Roof in an attractive eggshell finish, with a black powder-coated steel frame
  • Rounded roof eaves off additional protection from the elements.
  • 10 in. overhang at the roof gables offers additional protection.
  • Comes with a 10-year warranty

ARROW CARPORTS - Reliable, all-season, multi-use shelter

Built-to-Last Steel Roof

The tough horizontal panels of the roof canopy are made with 29-gauge galvanized steel and are painted for exceptional corrosion resistance. Not only does the durable galvanized steel roof protect your vehicle from rough weather and damaging UV rays, but it also shields it from leaves, branches, and other debris.

Industrial-Grade Steel Frame

The square tube galvanized steel frame has 15-gauge wall thickness and provides strength and support even in the worst weather. The sturdy, stable frame has a black powder-coated finish for superior rust and corrosion resistance.

Designed for DIY Installation

With slip-fit connections and self-tapping screws, it’s designed for the do-it-yourselfer to install right out-of-the-box. The carport comes with all the assembly hardware you need, and can be put together safely by three or more people, using a minimal set of tools.

Includes Easy Hook Anchors

Constructed of solid steel, these anchors include heavy-gauge steel cables, cable clamps, and a driving rod. They are ideal for securing your carport to a variety of surfaces: packed soil, sand, gravel, clay, and asphalt. A well-anchored carport will stay put in the worst weather.

Up to 100MPH Wind Rating - Up to 35 SPF Snow Rating

Wind and Snow Load Rated

Even when the weather is bad, you can count on an Arrow Carport to safeguard your vehicle. When properly anchored, Arrow Carports are engineered to take on wind speeds of up to 100 MPH and snow loads of up to 35 PSF.

Material Swatch

The carport roof panels are painted an attractive eggshell shade to complement your home exterior. The eggshell paint finish also gives your roof an extra layer of protection from corrosion.

Arrow Storage Products® featuring Sherwin-Williams® Coil Coatings

High-Performance Durable Coatings

Our customized polyester paint system offers outstanding resistance to the elements. Exclusively formulated by Sherwin-Williams Coil Coatings and available only on Arrow Sheds.

10 Year Limited Warranty

We Stand Behind Our Products

We proudly stand by the carports that we sell. Our all-steel carports carry a limited 10-year limited warranty that covers perforation caused by rusting through of the material, and failures which occur during normal use.

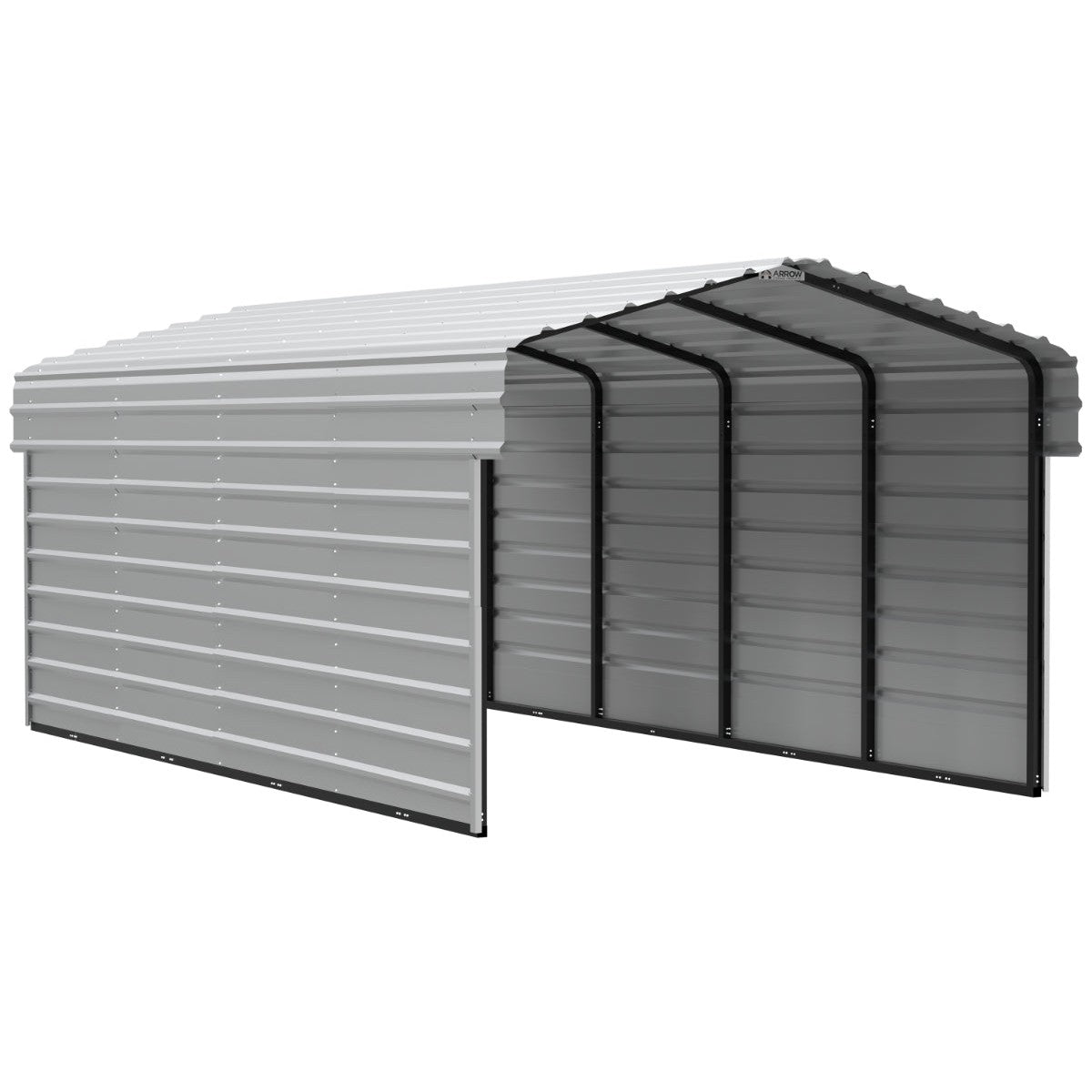

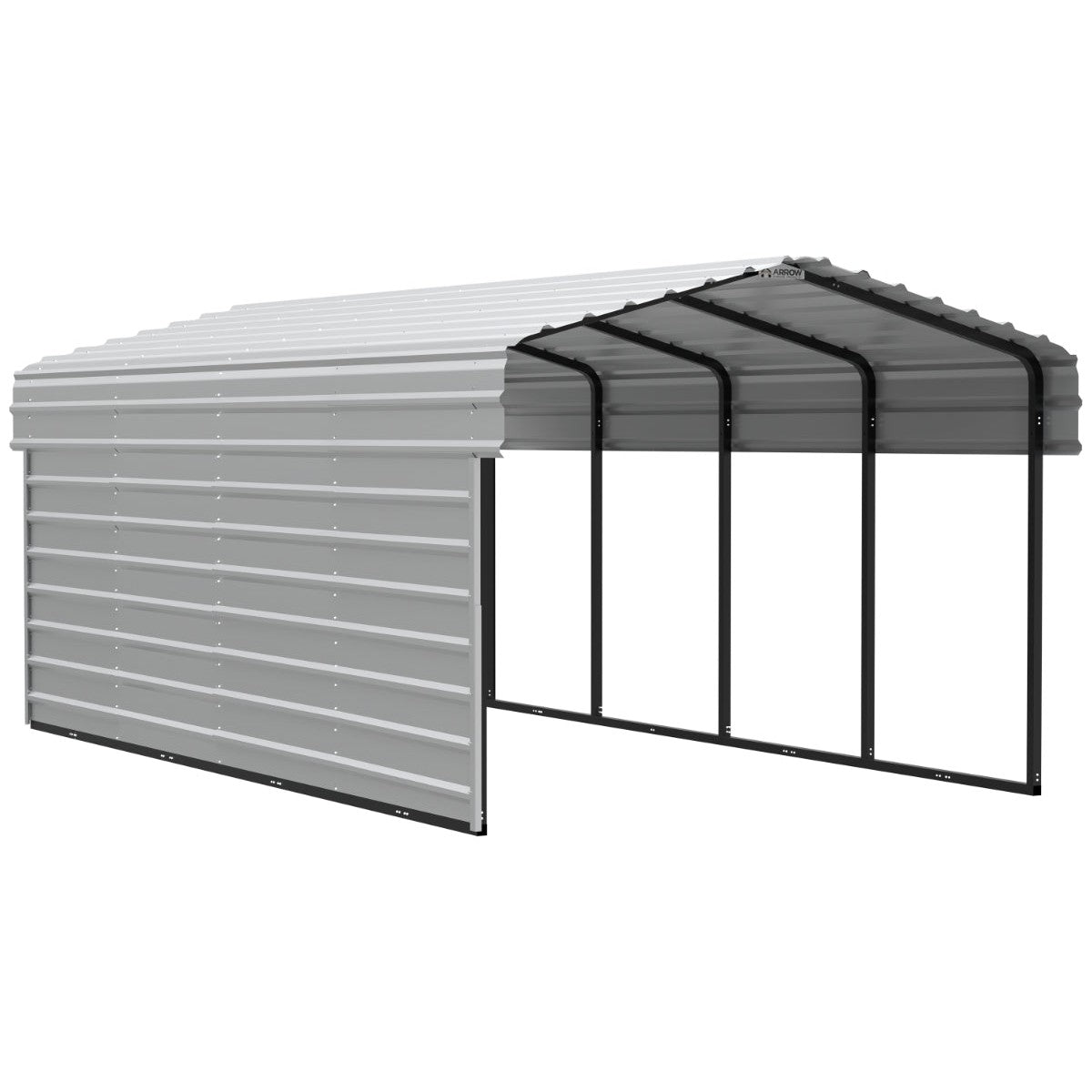

Arrow Storage Products CARPORTS - Available in multiple sizes.

Specifications
Specifications
Assembly Manual Download (PDF)

Details
Manufacturer Arrow Storage Products
Series Arrow Carport
Style Peak
Material Galvanized Steel
Colour Eggshell or Charcoal
Frame Color Black
Assembly Required Yes
Hardware Kit Yes
Included Items Frame, Cover, Hardware

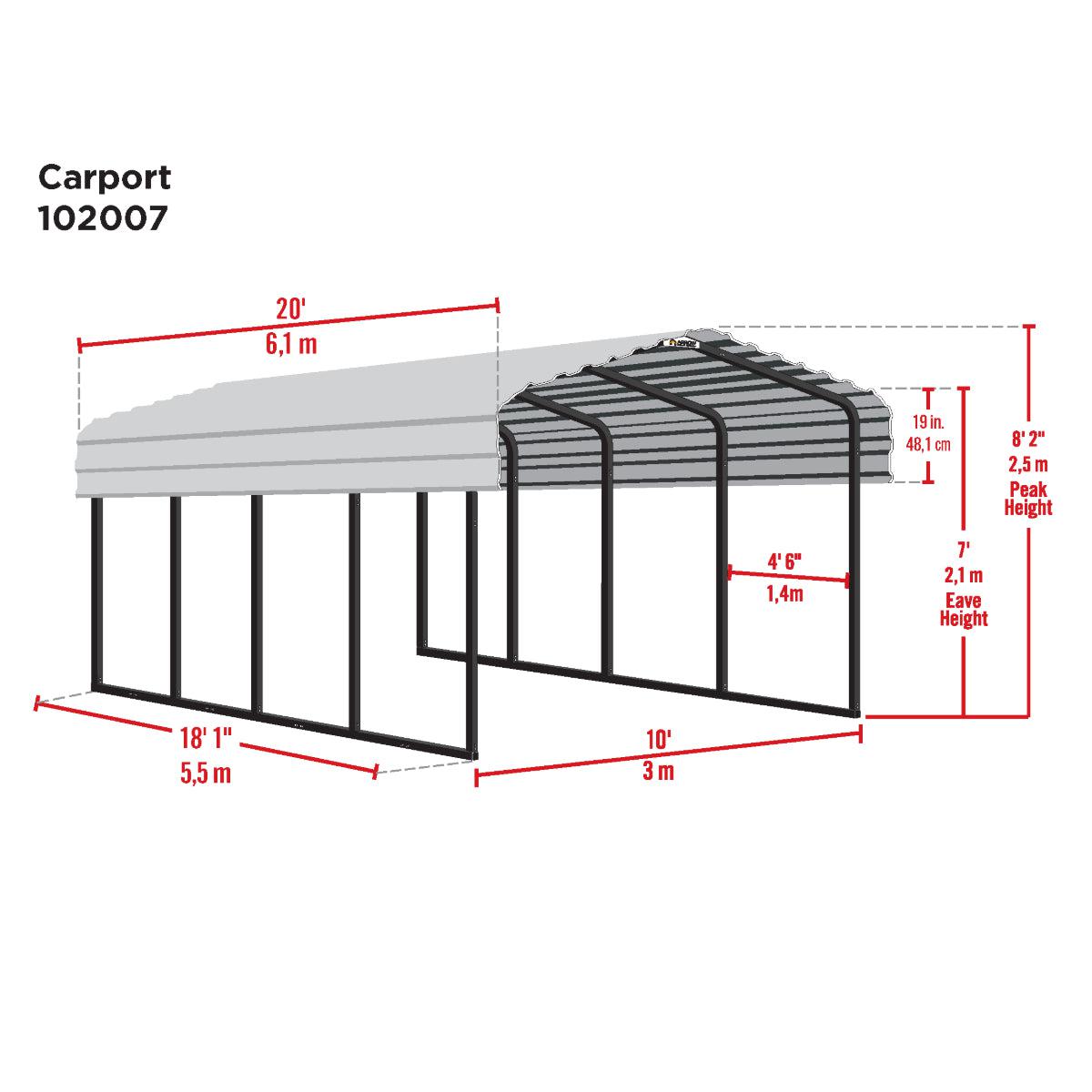

10 X 20 X 7 ft. Dimensions
Width 10 ft.
Length 20 ft.
Height 7 ft.
Size 10 x 20 x 7 ft.
Rib Tubing Diameter 2 in.
Total Storage Area 191 sq. ft.
Total Storage Volume 1435 cu. ft.
Assembled Exterior Dimensions Width 120 in.
Assembled Exterior Dimensions Depth 237 in.
Assembled Exterior Dimensions Height 98.4 in.
Assembled Interior Dimensions Width 116 in.
Assembled Interior Dimensions Depth 237 in.
Assembled Interior Dimensions Height 96.4 in.
Door / Entrance Width Bottom 116 in.
Door / Entrance Height Center 82 in.
Door / Entrance Height Outside 82 in.
Wall Height 84 in.

Warranty/Certifications
Warranty 10 Year Limited
Wind and Snow Rated Yes
Wind Speed Rating 100 MPH
Snow Load Rating 35 PSF
