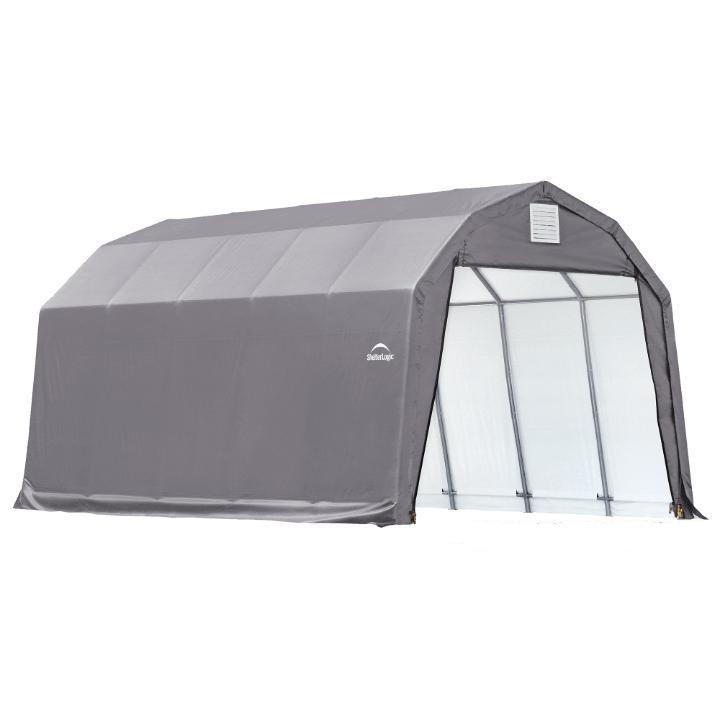

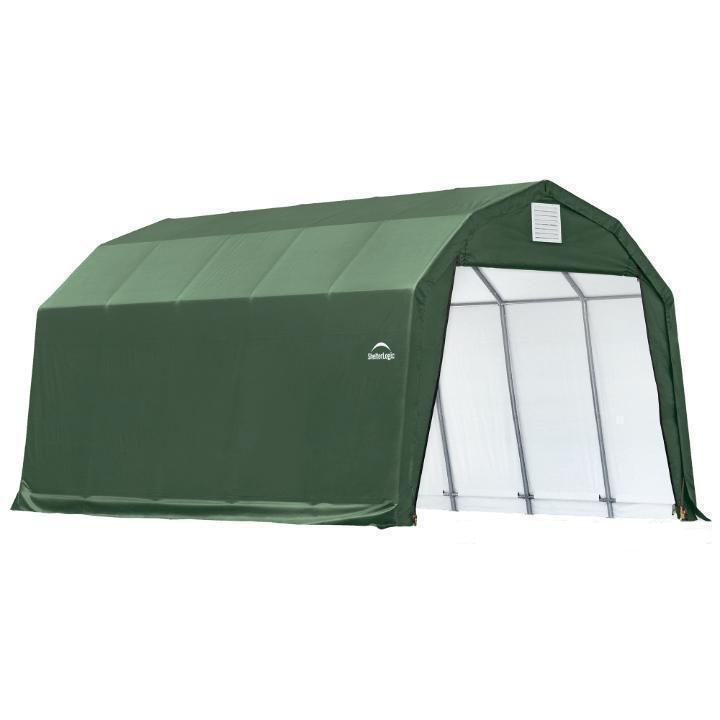

ShelterCoat 12 x 24 x 9 ft. Garage Barn Shelter | Shelterlogic
- Regular price
- Price: $1,765.00 CAD
- Regular price
-
List Price:
$1,999.00 CAD - Sale price
- Price: $1,765.00 CAD
- Unit price
- per
Availability: Only 3 in stock
Estimated Arrival: Between May 19 and Jun 06. CANADA Only.
Shipping Update: Typical estimated delivery time ranges from 3-15 Business Days (pre-orders excluded). Certain remote locations may require a longer time.
- Frame constructed of heavy-duty 1-5/8 in. diameter steel
- Premium powder coat finish protects the frame from corrosion and rust
- The ripstop tough advanced engineered polyethylene fabric cover is UV treated inside, outside, and in between. Heat-welded seams, not stitched, are 100% waterproof.
- ShelterLock stabilizers at every rib connection for rock-solid strength and stability
- Ratchet Tite tension system and Easy-Slide cross rails keep the cover smooth and taut
- Bolt-together hardware at every connection point ensures maximum strength and durability
- Universal steel foot plates for an easy and solid connection to ground anchors, cement, or pony walls
- The manufacturer recommends one anchor per leg - see included Anchor Guide for more information
- Click for Assembly Manual

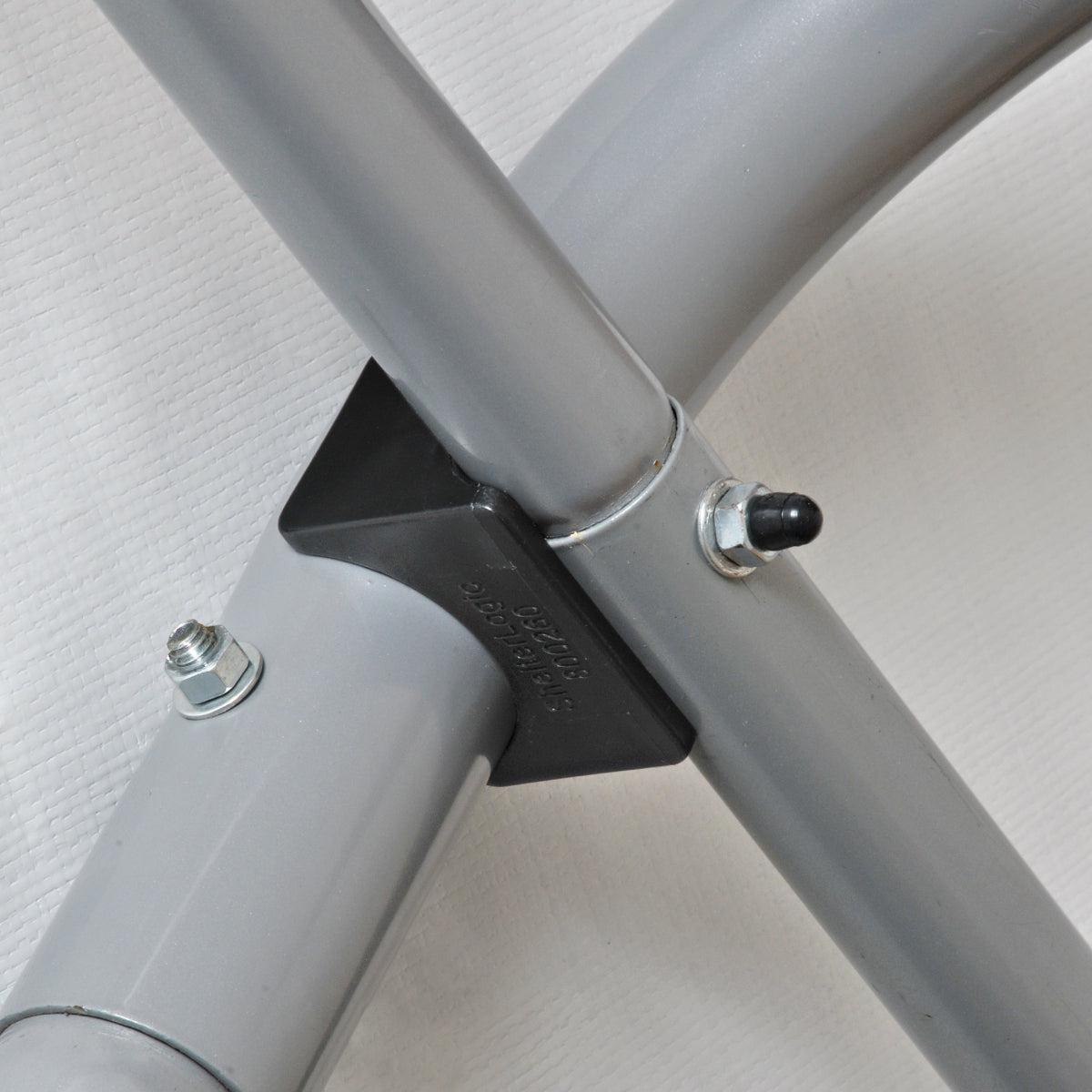

SHELTERLOCK Stabilizers

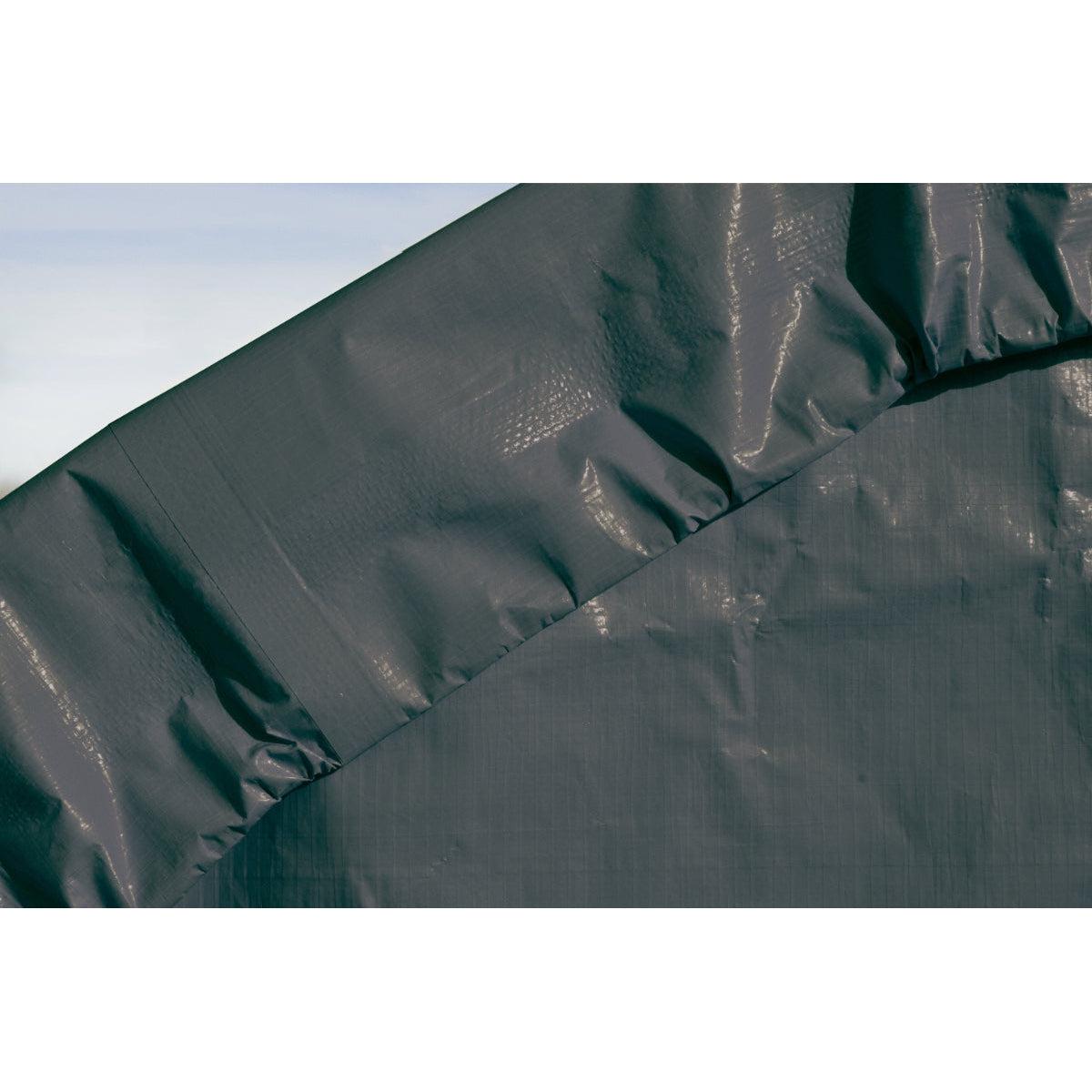

Ripstop Polyethylene Cover
Easy-Slide Cross Rail System
Ratchet-Tite Cover Tensioning System
What Fits?
Fabric Swatch
Premium Powder Coated Steel Frame
Warranty
Specifications
Details | |
---|---|
Manufacturer | ShelterLogic |
Series | ShelterCoat |
Style | Barn |
Material | Standard Polyethylene 9 oz |
Colour | Green or Gray |
Frame Color | Gray |
Door Type | 2 Double Zippered Doors, Front and Rear |
Assembly Required | Yes |
Hardware Kit | Yes |
Included Items | Frame, Cover, Hardware |

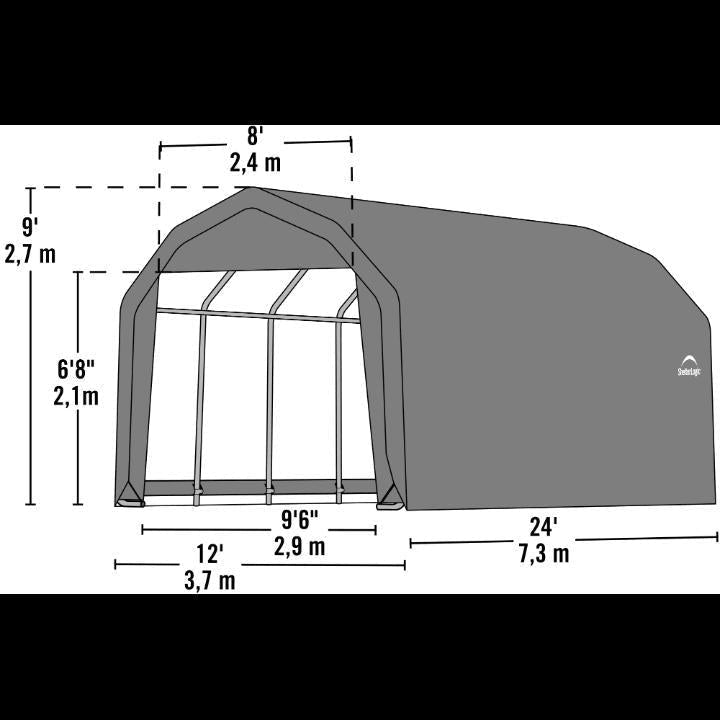

Dimensions | |
---|---|
Width | 12 ft. |
Length | 24 ft. |
Height | 9 ft. |
Size | 12 ft. x 24 ft. x 9 ft. |
Total Storage Area | 271 sq. ft. |
Total Storage Volume | 1912 cu. ft. |
Rib Tubing Diameter | 1.97 in. |
Assembled Exterior Dimensions Width | 142 in. |
Assembled Exterior Dimensions Depth | 286.9 in. |
Assembled Exterior Dimensions Height | 107.9 in. |
Assembled Interior Dimensions Width | 138.1 in. |
Assembled Interior Dimensions Depth | 282.9 in. |
Assembled Interior Dimensions Height | 105.9 in. |
Door Opening Width Top | 96 in. |
Door / Entrance Width Bottom | 114 in. |
Door / Entrance Height Center | N/A |
Door / Entrance Height Outside | 80 in. |
Wall Height | 65.39 in. |
Peak Height | 45.34 in. |
Warranty/Certifications | |
---|---|
Warranty | 1 Year Limited |
Waterproof | Yes |
Water-Resistant | Yes |
