Garda Enclosed Gazebo Solarium 17 x 20 ft. | Palram-Canopia

Canopia by Palram

Price: $16,995.00 CAD
List Price: $18,499.00 CAD
Price: $16,995.00 CAD
You save: $1,504.00 (8%)
Shipping calculated at checkout.

Availability: Only 2 in stock

Estimated Arrival: Between Dec 11 and Dec 29. CANADA Only.

Shipping Update: Typical estimated delivery time ranges from 3-15 Business Days (pre-orders excluded). Certain remote locations may require a longer time.

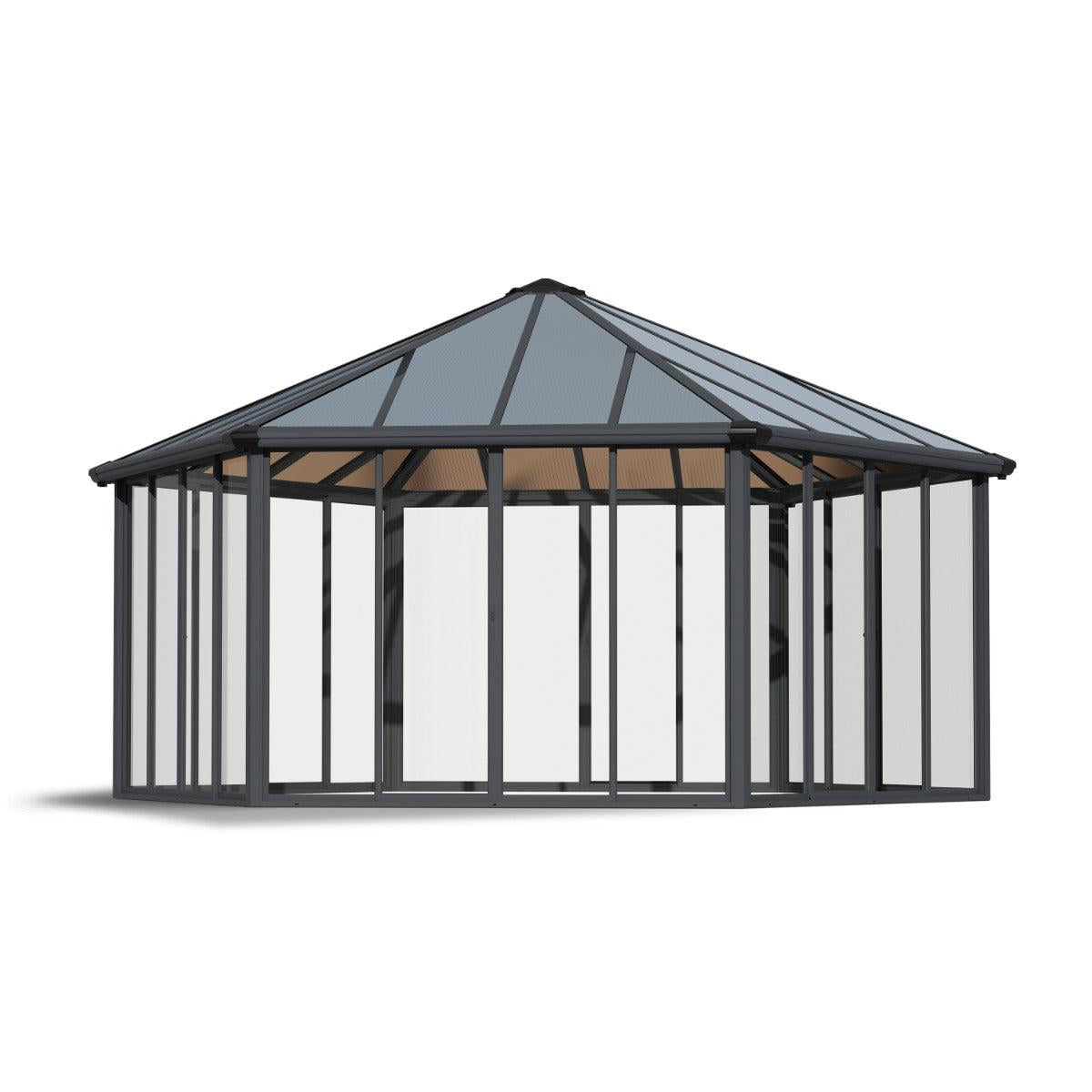

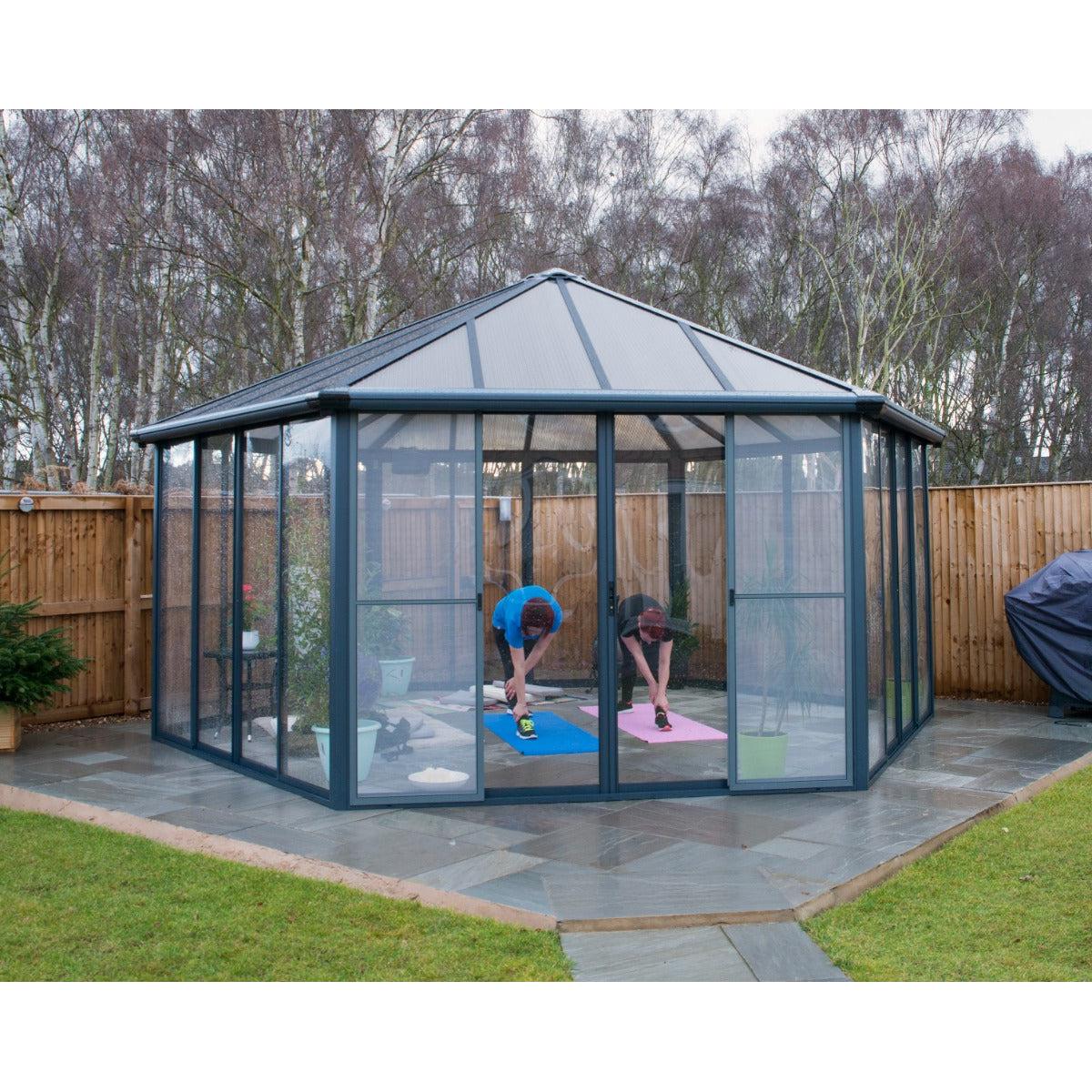

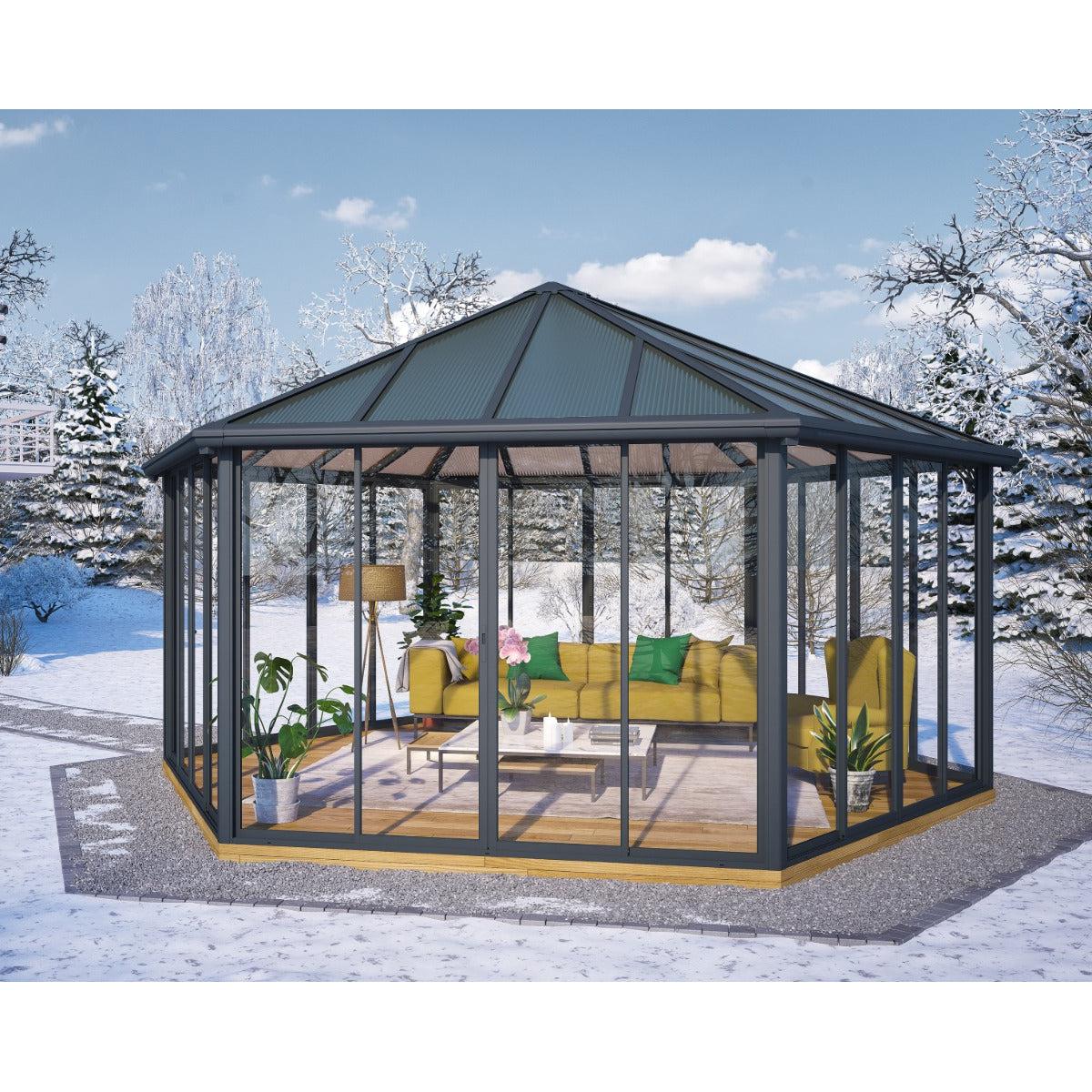

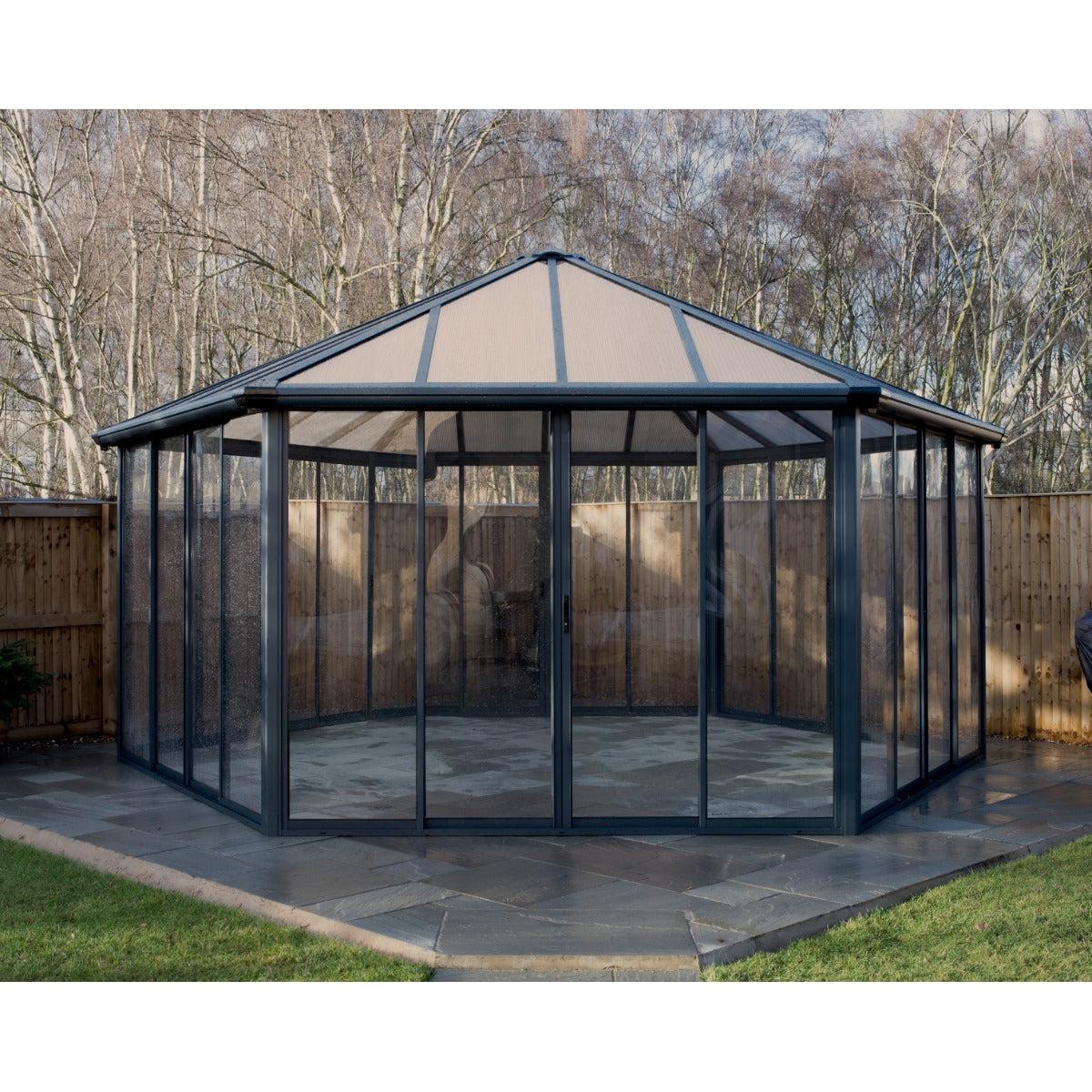

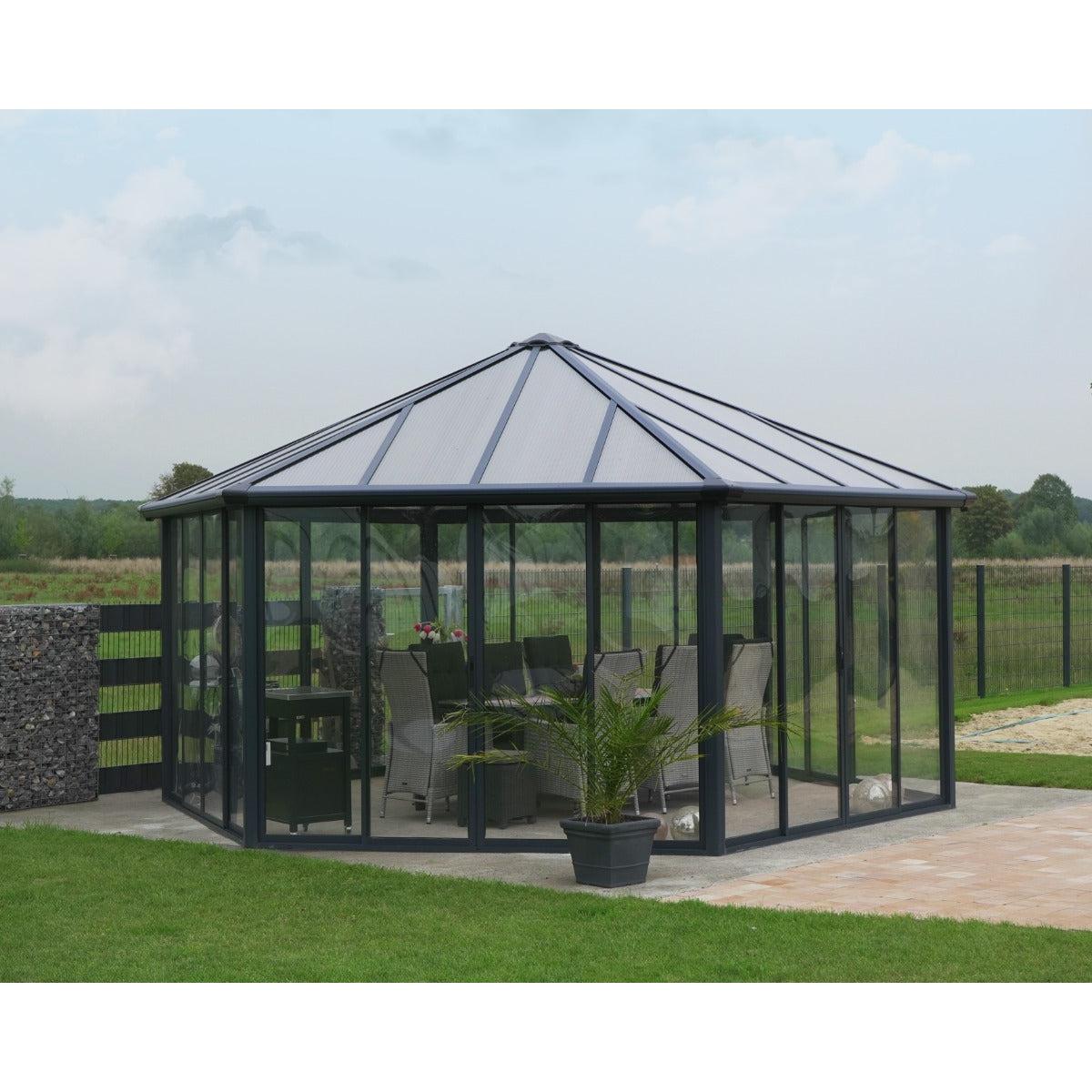

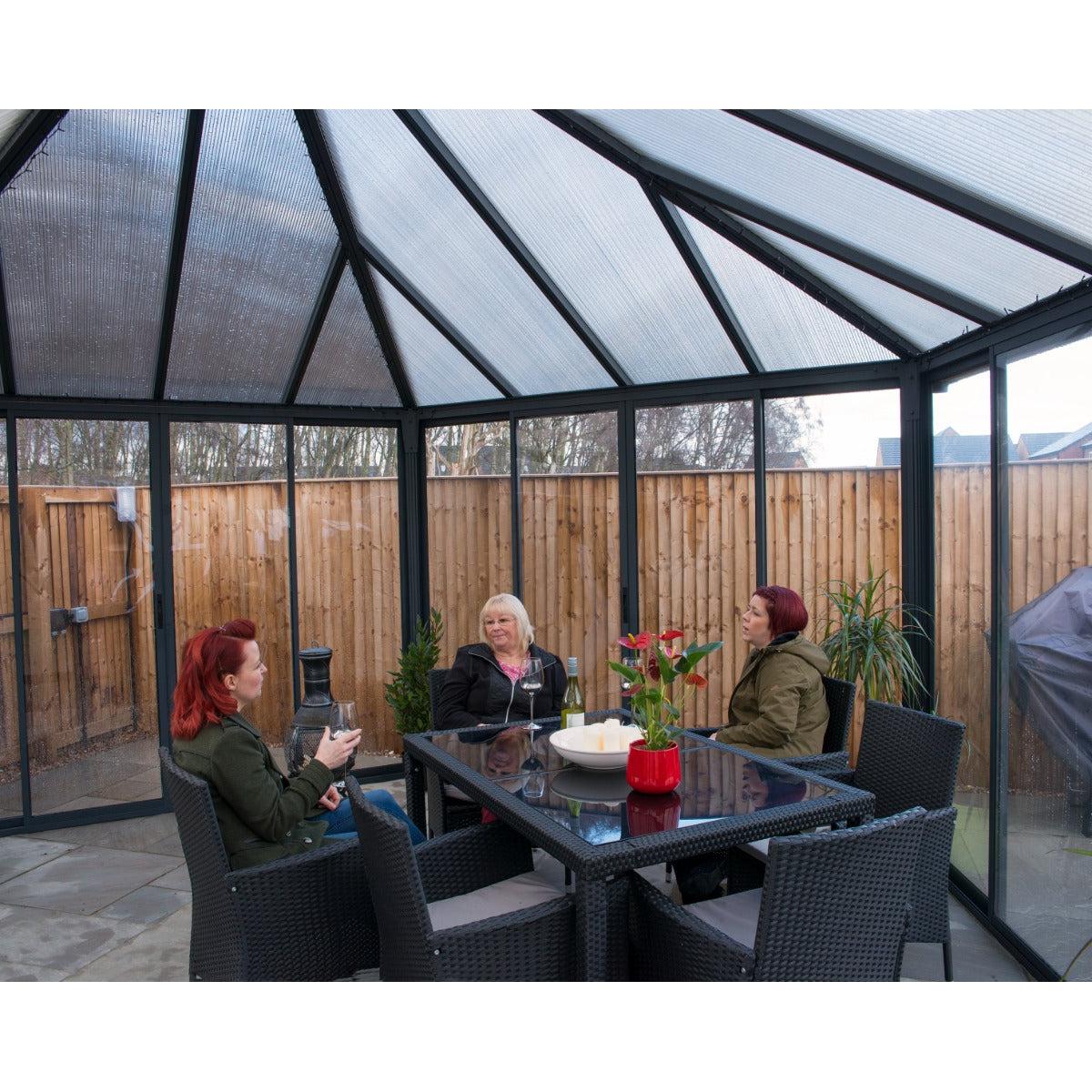

The Garda is an extra-large 17 x 20 ft. enclosed gazebo & solarium, perfect for outdoor dining, parties, or a private spa. With sliding doors, screen door kits, and heat retention, it's an all-inclusive outdoor room for all seasons. In one weekend, add value to your home and enjoy your beautiful new solarium.

  • Highly durable, elegant extra-large outdoor living space
  • Firm, rust-resistant, reinforced aluminum structure, engineered to withstand harsh weather conditions
  • Lifetime twin-wall bronze tinted polycarbonate roofing; does not turn yellow or become brittle over time
  • Proprietary screw-free glazing assembly system, specially developed to prevent rain/dew leaks

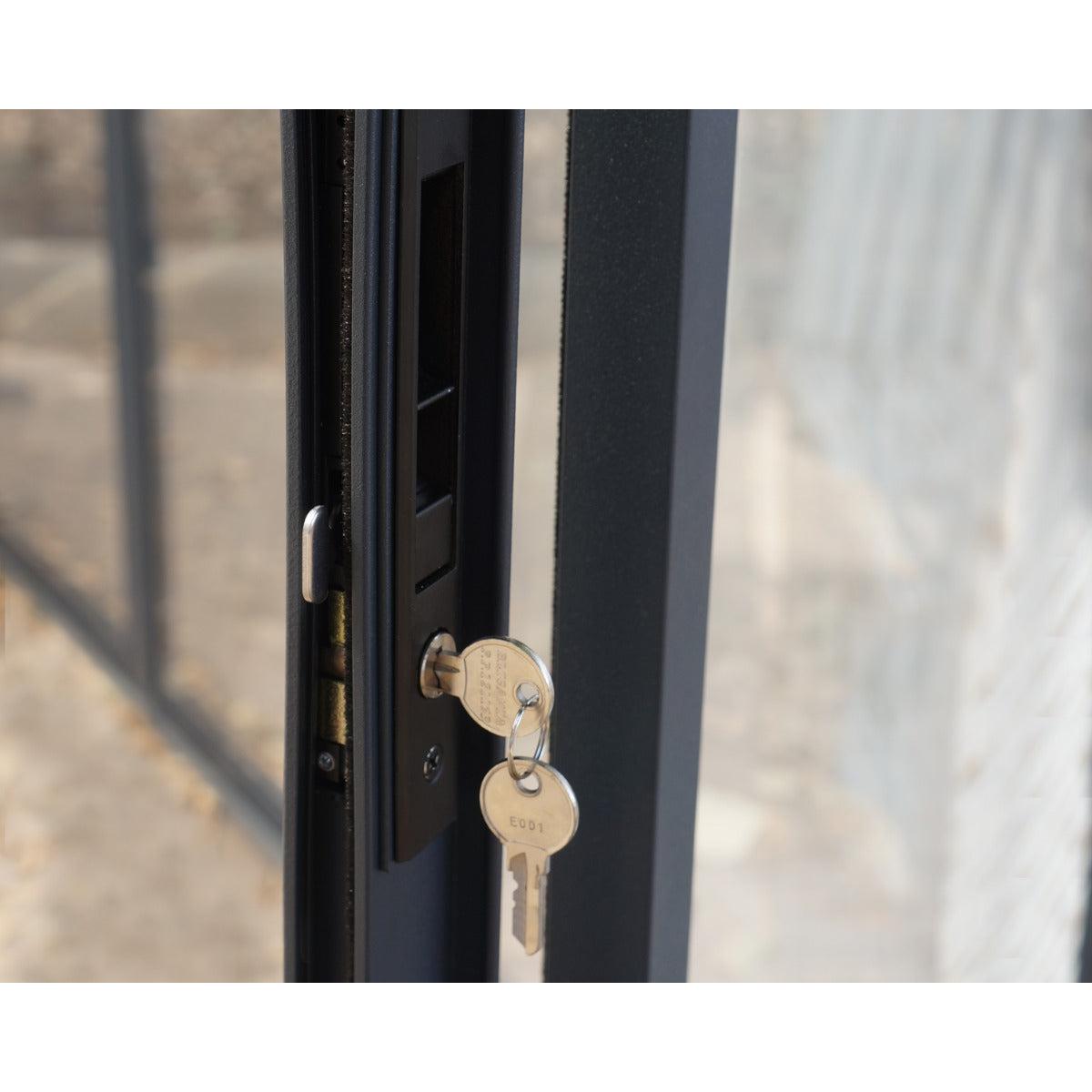

  • Large sliding doors allow enjoying the Ledro as a half-open Gazebo or as a multi-purpose intimate pavilion

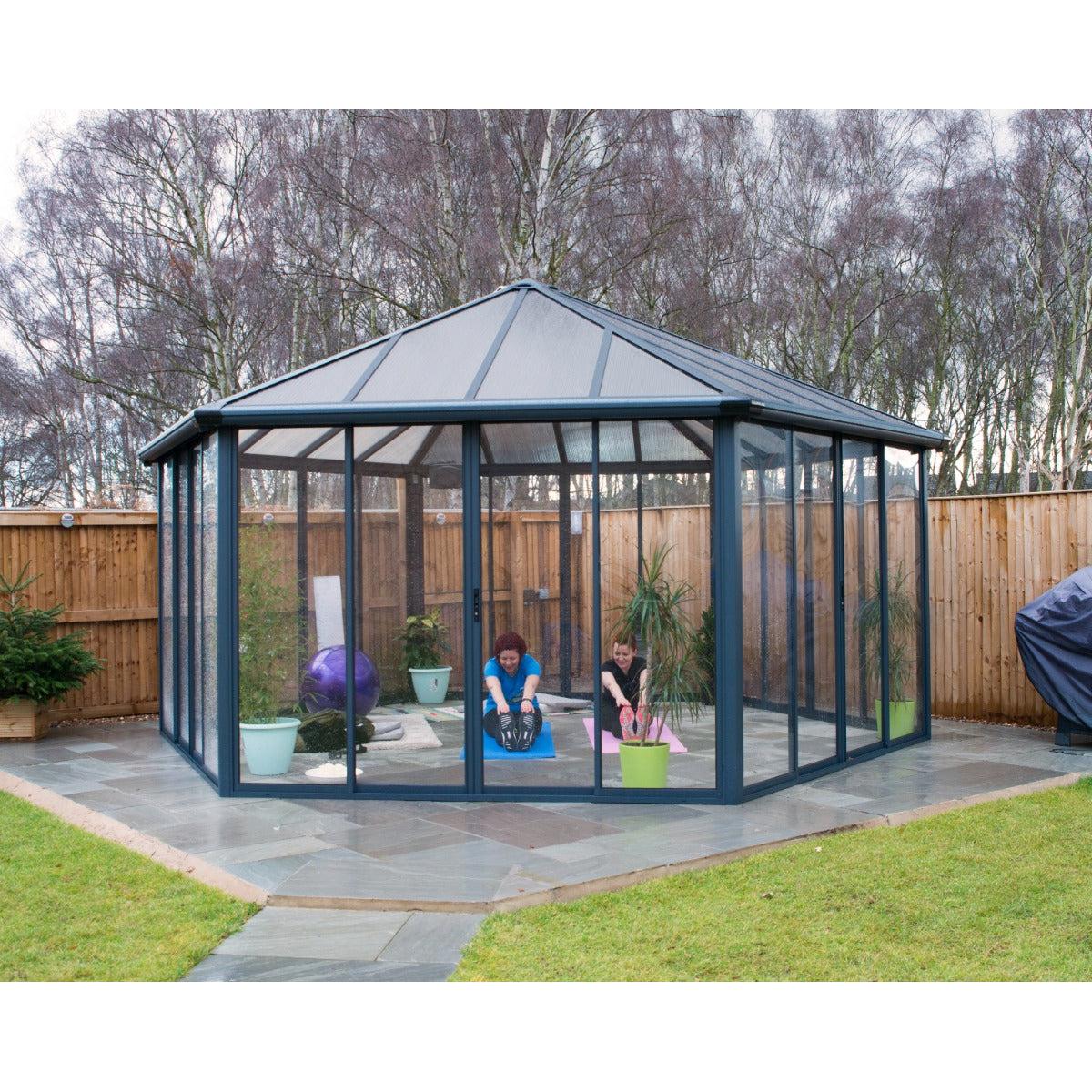

  • Fulfills many indoor purposes in the heart of your garden, any season: resting area, reading room, BBQ, canopy, garden office, dining room, party lounge, spa cabin…
  • 100% protection from harmful sun rays (UV) allows endless recreation time outdoor
  • Maintenance-free and built-to-last thanks to outstandingly durable materials
  • Made with 100% recyclable components

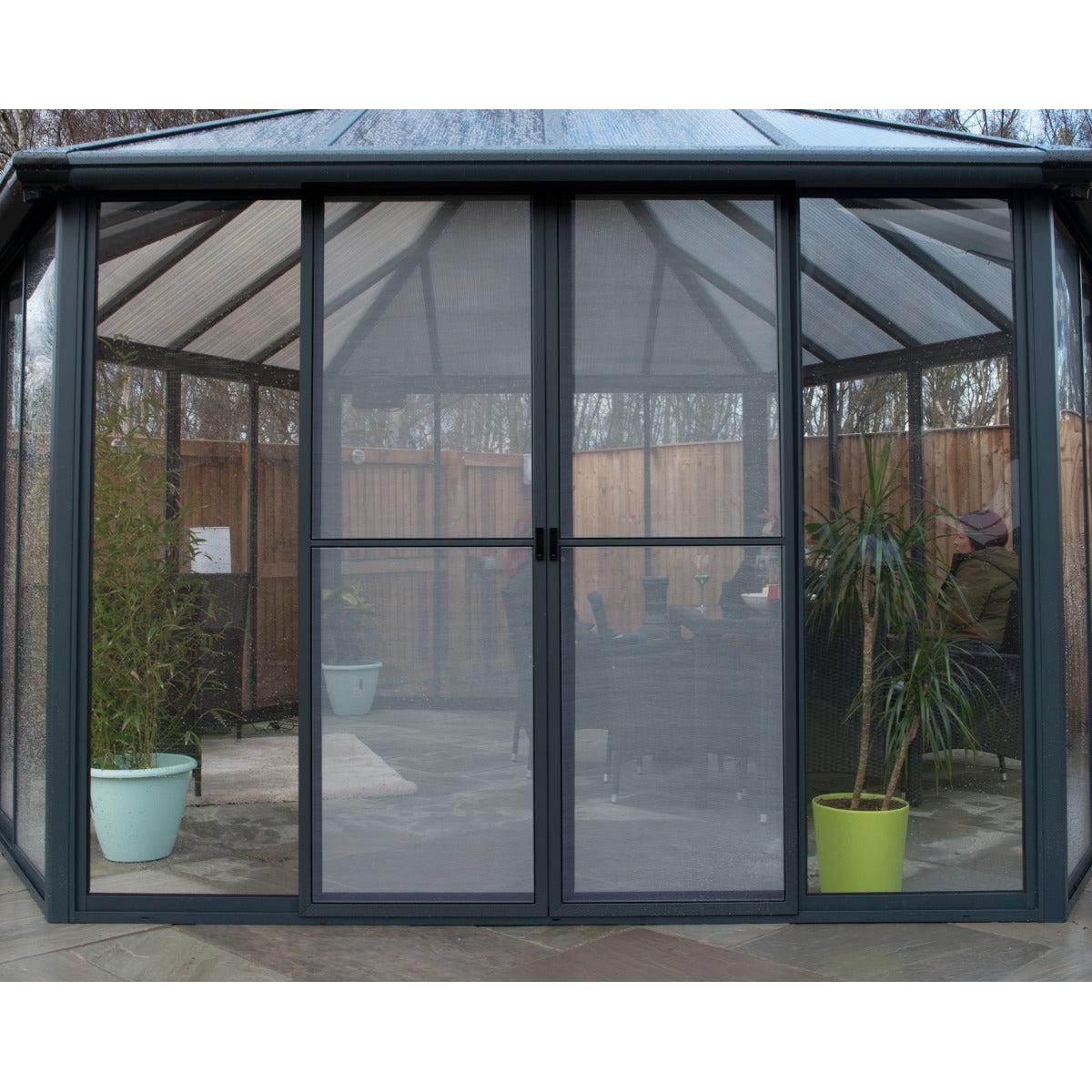

  • Includes 2 Screen Doors
  • 10 Years Limited Warranty
  • Optional Outdoor Heater
  • Optional LED Lighting System
  • Click to download Instruction Manuals

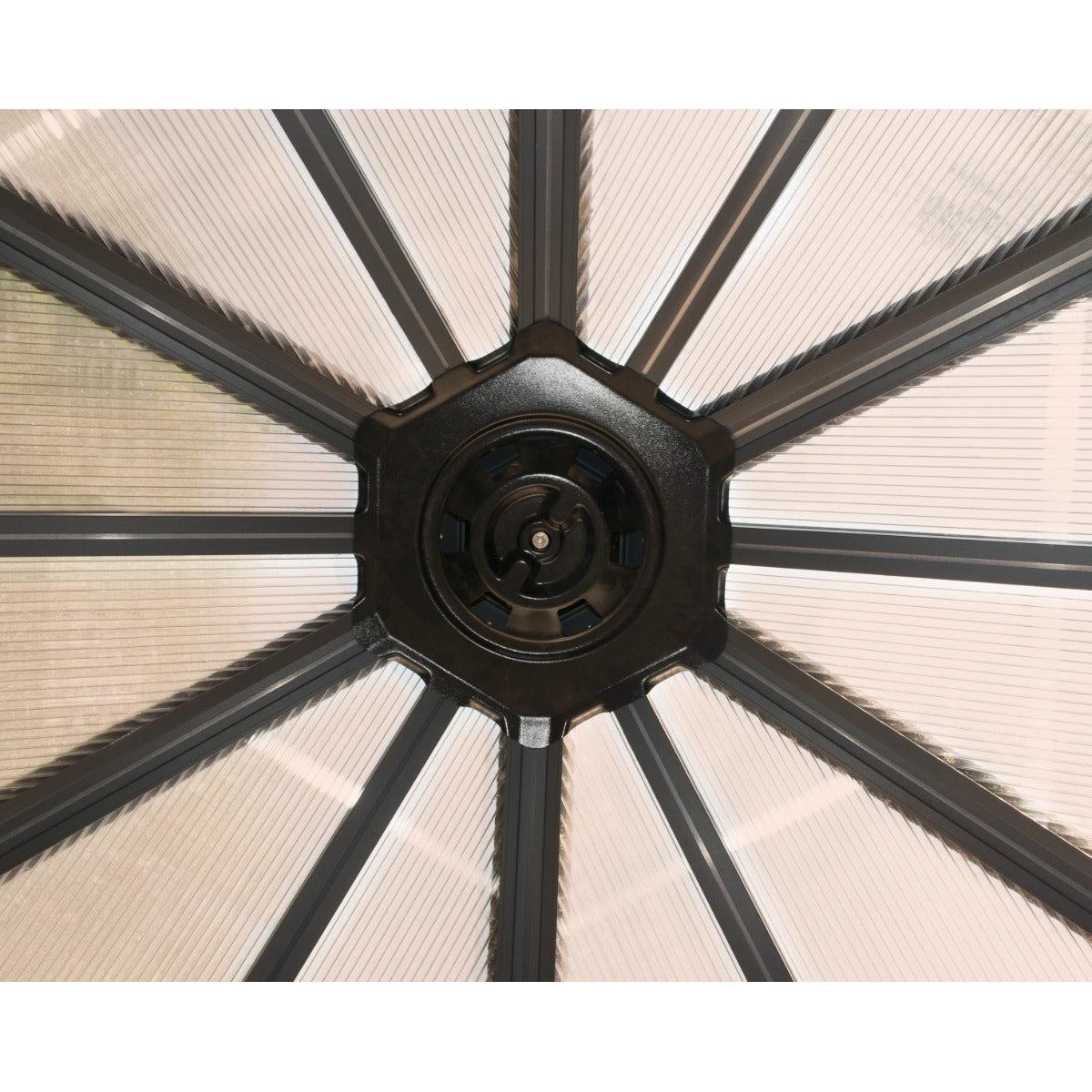

Polycarbonate roof panels
  • Virtually unbreakable, 16 mm multi-wall polycarbonate roof panels
  • Treated bronze glazing transmits natural sunlight on overcast cloudy days yet provides sufficient shading
  • Maintain their integrity, provide complete UV blockage, and are 100% UV protected; they do not discolour, fracture or become brittle over time
  • Ready to assemble pre-cut panels
  • Sliding panels assembly system for safe and simple installation



Acrylic wall panels

  • High impact, crystalline acrylic 3 mm wall panels, naturally resistant to harmful UV rays
  • The high impact acrylic sheets maintain high light transmission throughout their long life
  • Transparent acrylic wall system, resilient and easy to clean, perfectly integrates with any home design and outdoor environment

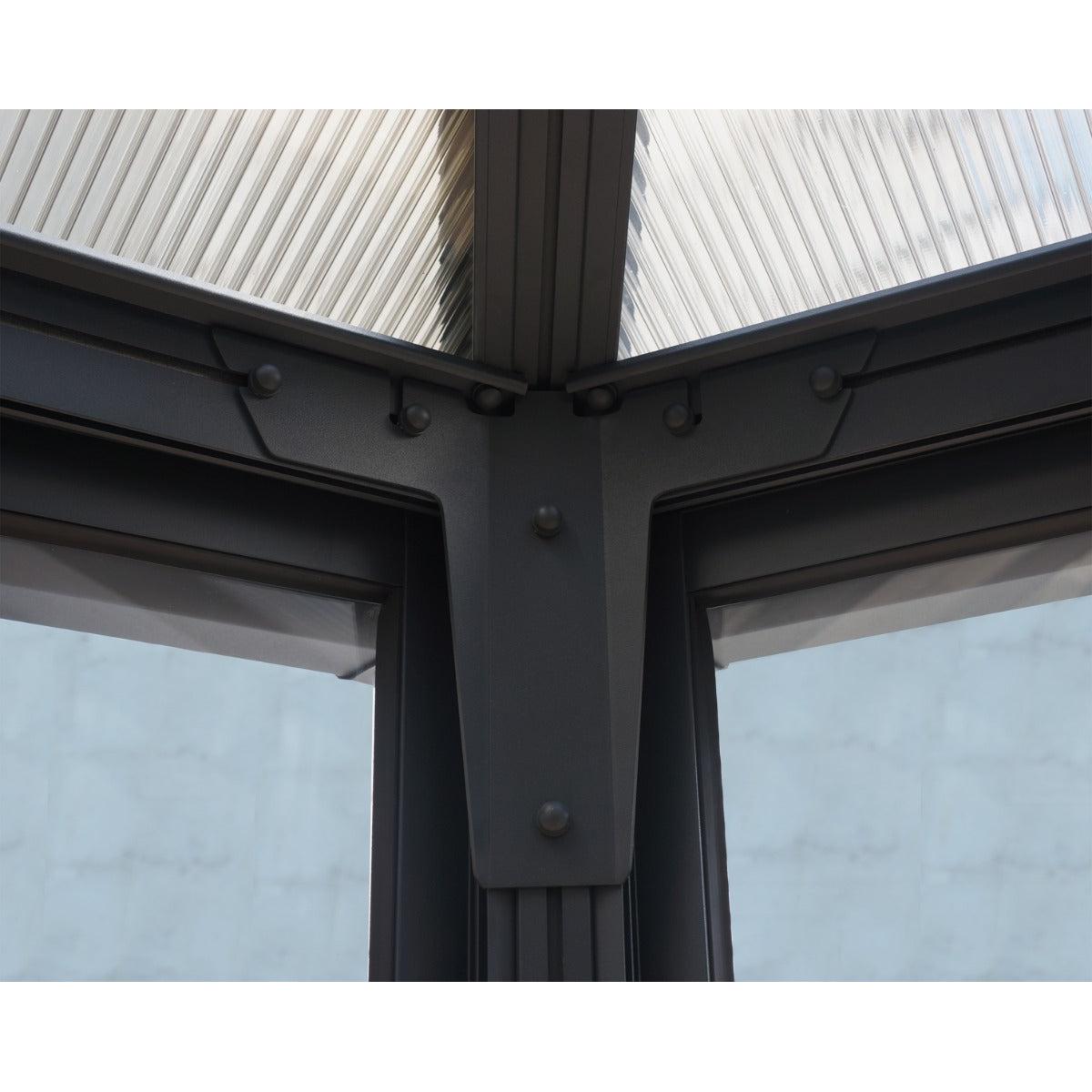

Aluminum Structure

  • Granulated anthracite powder-coated frame is made of heavy-duty aluminum profiles, nd laser cut galvanized steel connectors
  • Provides a highly durable, rust-resistant & extra-rigid structure
  • Ready to assemble pre-drilled profiles
  • Simple 2 person DIY assembly sliding panels assembly system, ready to assemble pre-drilled profiles; all screws included

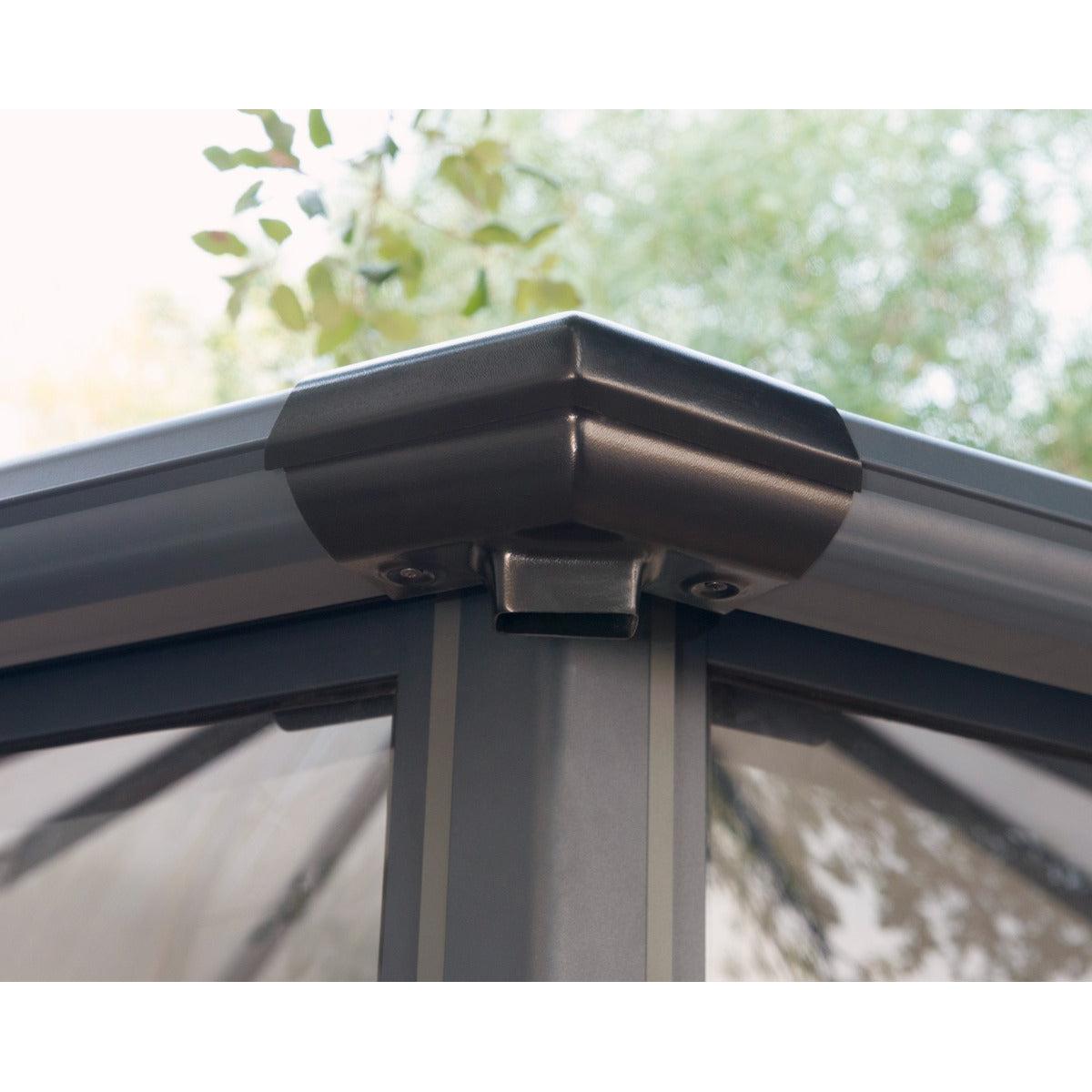

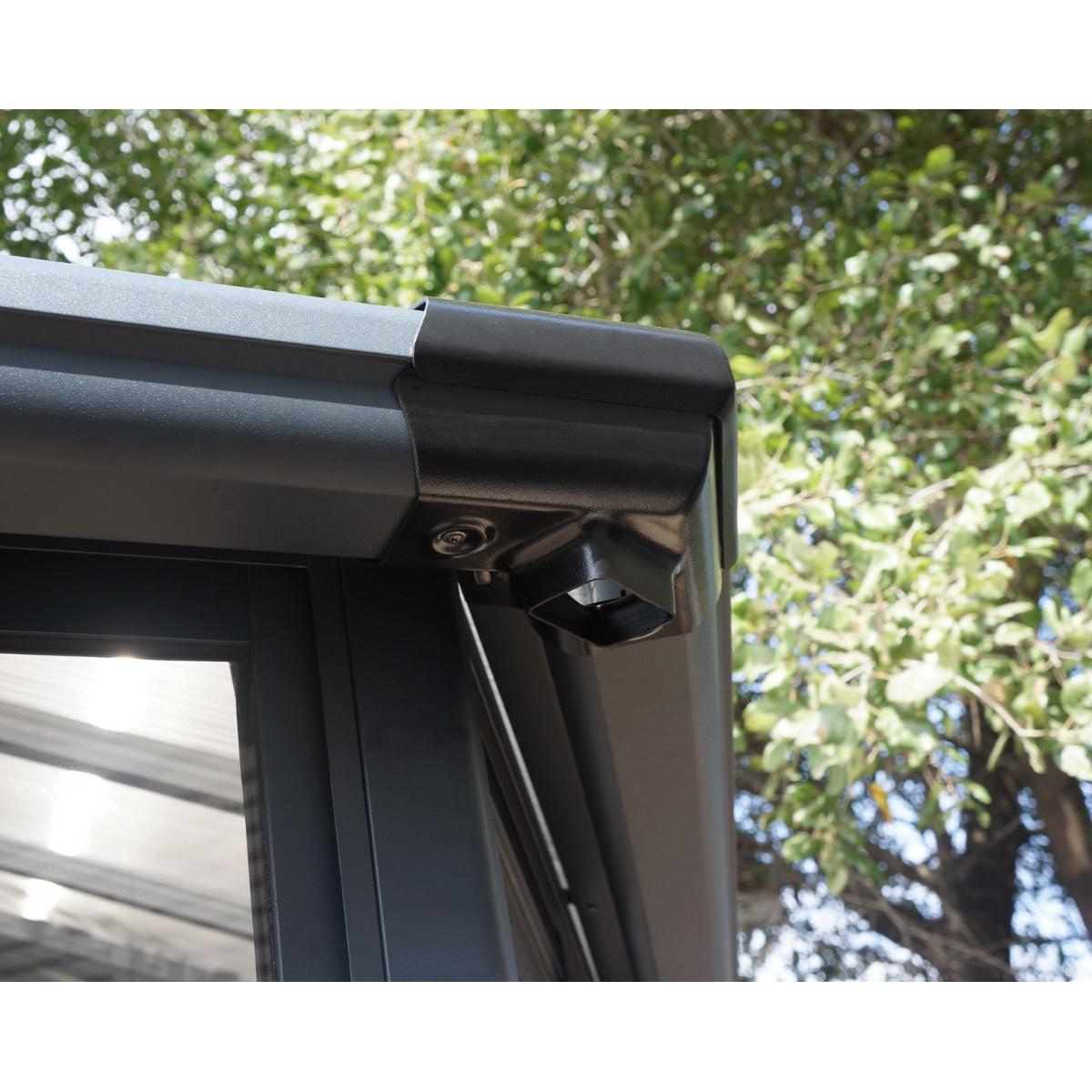

Gutter & gutter heads

  • Integrated gutter and gutter heads allow you to channel and collect rainwater for a sustainable irrigation system easily

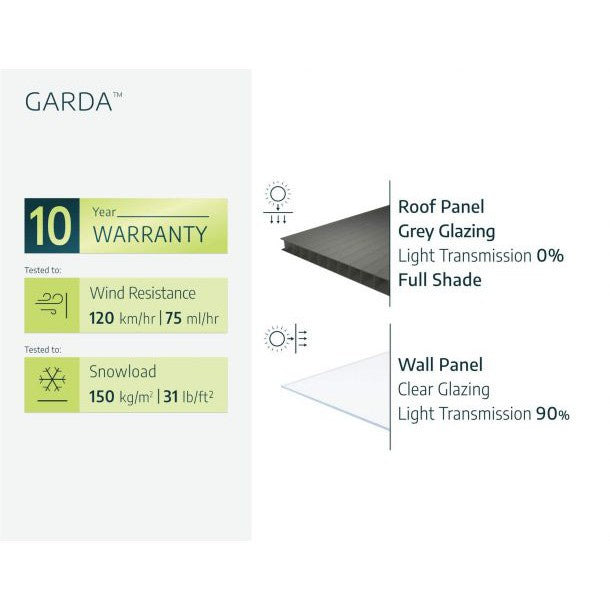

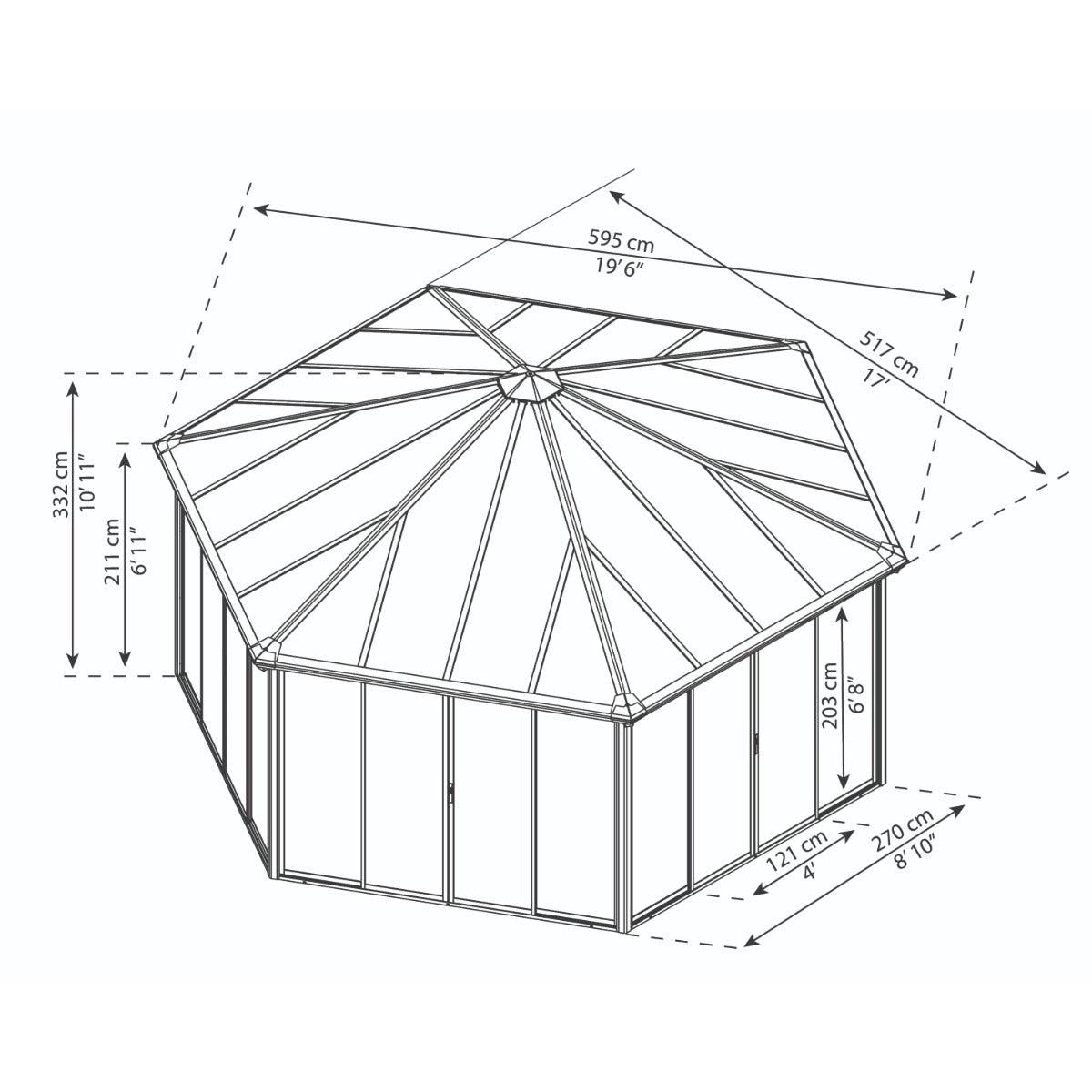

 Specifications

  • COVERING AREA = 23.1M2 / 248.3FT2
  • STORAGE AREA = 19.1M2 / 205.3FT2
  • PRODUCT VOLUME = 50.9M3 / 547.12FT3
  • WIND RESISTANCE – 120km/hr | 75ml/hr
  • SNOW LOAD – 150kg/m² | 30.7lbs/ft²
  • LIGHT TRANSMISSION – 10%
  • POLYCARBONATE ROOF PANEL – 16mm
  • POLYCARBONATE WALL PANEL – 3mm

Foundation

A
Prepare the site

The product must be built on a solid an leveled surface in order to perform properly.

1 - Clear the site

1
2

2 - Level the ground

3
4
IMPORTANT

We recommend checking for restrictions or covenants for building this product in your area. In addition we advise to check if you need to submit any forms or if any permit is required prior to building the product.

B
Choose your foundation type

Option 1: Concrete / Wooden Deck

The screws and masonry anchors supplied with the kit are suitable for concrete fixing only. Please consult with an expert regarding which fasteners are suitable for other surfaces types (not supplied).

Group 7793@2x
Group 8332@2x

Option 2: Paving stones

Dig holes into the ground and fill with concrete. For frozen areas, please check the required depth needed for these holes.

Group 7798@2x
Group 7799@2x
Group 7800@2x

Option 3: Solid ground / Asphalt

a – 10 cm / 4″ | b + c – 40 cm / 1’4″

Option 3: Solid ground / Asphalt

Group 8497@2x
Group 8496@2x
Group 8495@2x

a + b + c – 40 cm / 1’4″
